SS24H-R05600-CH

Overview

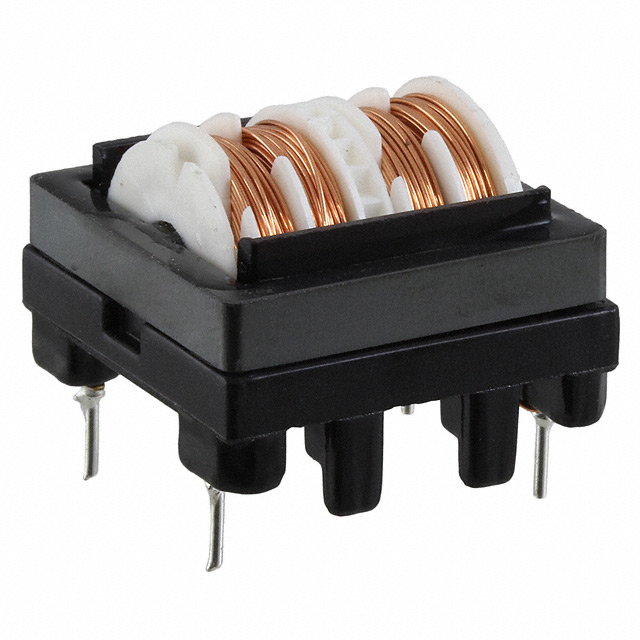

The KEMET SS24H-R05600-CH is a through-hole common mode choke belonging to the SS24V/H-CH series. It features a proprietary ferrite core and bobbin construction designed for noise countermeasure applications. The component provides an inductance of 0.06 H (60 mH) with a maximum DC current rating of 500 mA. It operates within a temperature range of -25 °C to 120 °C and has a maximum DC resistance of 1.75 ohms.

Feature Summary

• Proprietary ferrite core design for effective noise suppression
• Through-hole bobbin style construction
• Optimized for common mode interference mitigation

Applications

• Noise countermeasure circuits
• Common mode filtering in power lines
• Signal integrity protection in electronic assemblies

Procurement Notes

Verify availability status as this part may be obsolete. Confirm exact physical dimensions and pin configurations against target PCB layouts. Ensure replacement components meet identical electrical specifications including inductance, current rating, and thermal limits. Check RoHS compliance requirements for the specific application environment.

Selection Notes

Select based on required inductance value and current handling capacity. Consider operating temperature range relative to the installation environment. Evaluate physical size constraints for through-hole mounting. Verify compatibility with existing circuit impedance and noise frequency profiles.

Part Context

This component is part of KEMET's SS Coils family, specifically the SS24V/H-CH series. These chokes are engineered for robust performance in demanding environments. The series utilizes specialized materials to achieve high inductance in a compact through-hole package suitable for various industrial and commercial electronics.

Replacement Considerations

KEMET recommends the SSR21NHS-M051200 as a substitute. Verify that the alternative matches the original inductance, current rating, and physical footprint before implementation.
