SS24H-R10170-CH

Overview

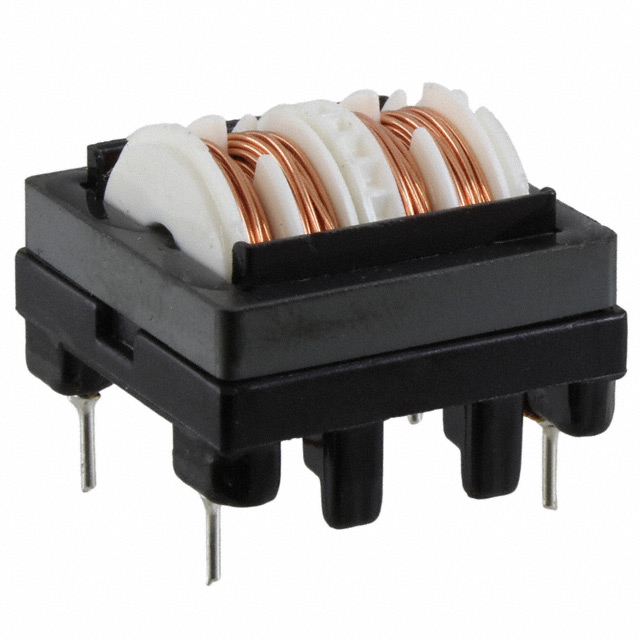

The KEMET SS24H-R10170-CH is a gear-type coil designed for noise countermeasure applications. It features a proprietary ferrite core and an inductance of 0.017 H. The component is classified as commercial grade and belongs to the SS24V/H-CH product series.

Feature Summary

• Utilizes proprietary ferrite cores for enhanced magnetic performance
• Engineered specifically for noise countermeasure fields

Applications

• Noise countermeasure applications

Procurement Notes

Verify the specific datasheet version and manufacturer documentation to confirm compliance with current commercial grade specifications. Ensure the component meets the required inductance tolerance and thermal characteristics for the intended circuit environment before integration.

Selection Notes

Select this component when designing circuits requiring gear-type coils with proprietary ferrite cores for noise suppression. Confirm that the commercial grade rating aligns with the operational temperature range and environmental conditions of the target application.

Part Context

This part belongs to the SS24V/H-CH series from KEMET, which specializes in gear-type coils. These components are distinct from ceramic capacitors or supercapacitors listed in general power supply catalogs, focusing instead on magnetic noise mitigation solutions.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
