SS24V-R08250-CH

Overview

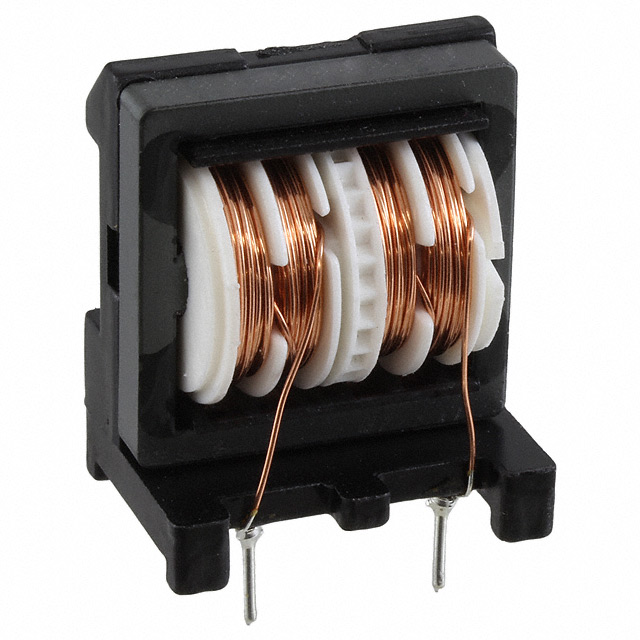

The KEMET SS24V-R08250-CH is a through-hole common mode choke belonging to the SS24V-CH series. It features a bobbin construction with an inductance of 25 mH and a maximum DC current rating of 800 mA. The component has a maximum DC resistance of 750 mOhms and operates within a temperature range of -25 °C to +120 °C. It is designed for vertical mounting and measures 26 mm in length, 19 mm in width, and 31.5 mm in height.

Feature Summary

• Through-hole bobbin construction for vertical mounting
• Common mode filtering capability for line applications
• High thermal stability up to 120 °C

Applications

• AC line filtering
• EMI suppression in power supplies
• General purpose noise reduction

Procurement Notes

Verify the Not Recommended for New Designs (NRND) status before finalizing designs. Confirm that the 800 mA current rating and 25 mH inductance meet specific circuit requirements. Ensure mechanical dimensions fit the target PCB layout. Check for recent Product Change Notifications or lifecycle updates from the manufacturer.

Selection Notes

Select this component when through-hole installation is required for robust mechanical attachment. Consider the 750 mOhms DC resistance impact on voltage drop. Evaluate if the 25 mH inductance provides sufficient attenuation for the target frequency spectrum. Verify compatibility with the 250 VAC operating environment.

Part Context

This part belongs to the SS24V-CH series of common mode chokes manufactured by KEMET. These components are typically used in AC power line applications to suppress electromagnetic interference. The series offers various inductance and current ratings to suit different power levels and filtering needs.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
