SS24V-R15080-CH

Overview

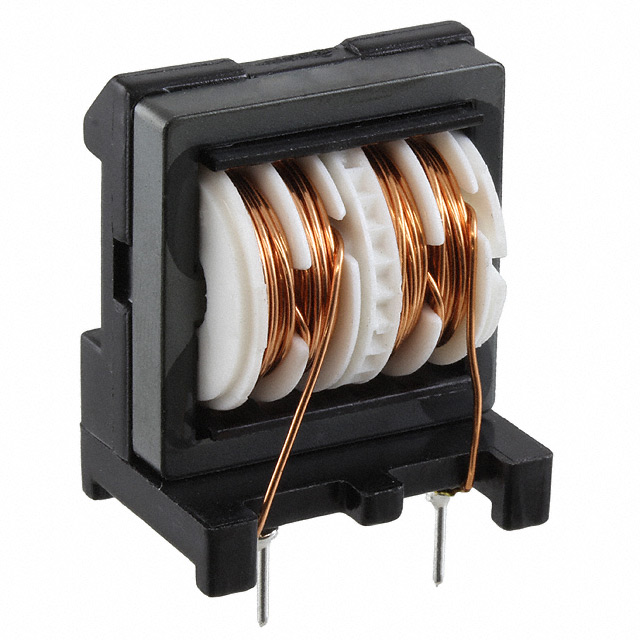

The KEMET SS24V-R15080-CH is a through-hole common mode choke designed for AC power line filtering. It features an inductance of 8 mH at 1 kHz and supports a maximum current rating of 1.5 A. The component has a DC resistance (DCR) of 240 mOhm and operates within a temperature range of -25°C to 120°C. Rated for 250 V AC, it utilizes a vertical package with four PC pins. Dimensions are 26.00 mm x 19.00 mm x 31.50 mm.

Feature Summary

• Provides common mode noise suppression for two-line AC power circuits
• Engineered for high thermal stability up to 120°C operating temperature
• Constructed for robust through-hole mounting on printed circuit boards

Applications

• AC power line input filtering
• Electromagnetic interference suppression in consumer electronics
• Power supply input stages

Procurement Notes

Verify the complete part number including suffixes against official KEMET documentation to ensure correct specifications. Confirm RoHS3 compliance status and lead times directly with authorized distributors or the manufacturer prior to ordering. Ensure design-in compatibility with required current and voltage ratings.

Selection Notes

Select this component when designing AC power inputs requiring common mode noise attenuation. Verify that the 1.5 A current rating and 250 V AC voltage rating meet system requirements. Consider the through-hole mounting style and physical dimensions for PCB layout constraints. Check thermal performance limits relative to ambient operating conditions.

Part Context

This component belongs to the KEMET SS series of common mode chokes. The series offers various inductance values and current ratings for power line filtering applications. The SS24V variant specifically targets higher current requirements compared to lower-rated counterparts in the same family.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Cross-reference inductance, current rating, and physical dimensions before substituting. Generic equivalents may not match electrical performance or safety certifications.
