SS24V-R20045-CH

Overview

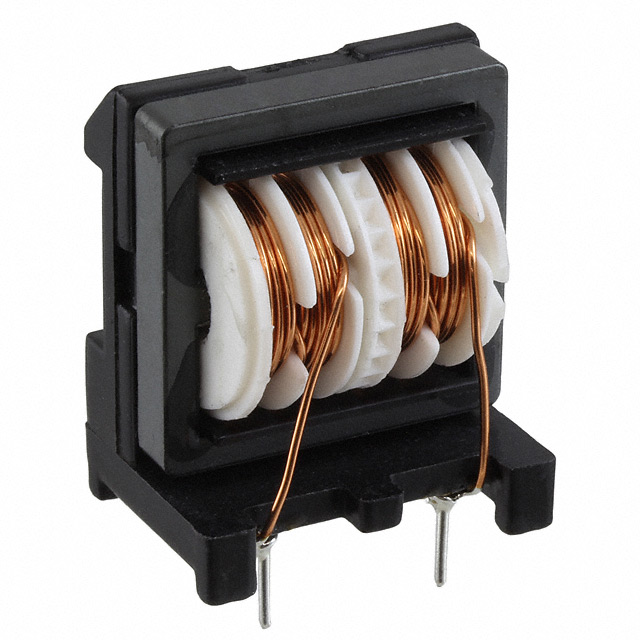

The KEMET SS24V-R20045-CH is a through-hole common mode choke designed for power line filtering applications. It features an inductance of 4.5 mH measured at 1 kHz and supports a current rating of 2 A. The component has a direct current resistance (DCR) of 170 mOhm. It is constructed as a two-line common mode choke suitable for suppressing electromagnetic interference in AC circuits rated up to 250 VAC.

Feature Summary

• Provides reliable EMI suppression for power lines
• Through-hole construction for secure mounting
• Two-line configuration for differential noise handling

Applications

• Power line filtering
• EMI suppression in AC circuits

Procurement Notes

Verify the complete part number including the suffix CH against official KEMET documentation to ensure correct specifications. Confirm that the 170 mOhm DCR and 2 A current ratings align with your circuit requirements. Check for RoHS compliance status if required by your manufacturing standards. Ensure the through-hole package dimensions fit your PCB layout constraints before ordering.

Selection Notes

Select this component when designing power supplies or AC input stages requiring common mode noise reduction. The 4.5 mH inductance offers effective attenuation for typical EMI frequencies. The 2 A rating suits moderate power applications. Consider the physical size and lead spacing for board integration. Verify thermal performance under continuous load conditions.

Part Context

This component belongs to KEMET's range of passive electronic components, specifically within the common mode chokes and filters category. It is engineered for industrial and consumer electronics where power line integrity is critical. The design focuses on compact form factors while maintaining high performance in noise suppression tasks.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
