SS25B2032

Overview

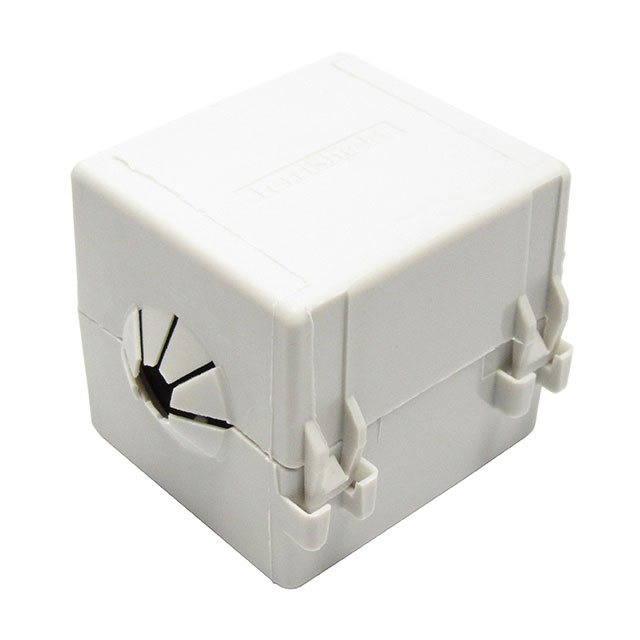

The SS25B2032 is a square ferrite clamp-on core manufactured by Leader Tech Inc. It features a snap spring grip design with end ports for secure cable retention. The component has an inside diameter of 12.7 mm and external dimensions of 36.8 mm in length, 29.33 mm in width, and 28.6 mm in height. It provides an impedance of 510 Ohms at 700 MHz and is effective across the 100 MHz to 1 GHz frequency range.

Feature Summary

• Snap spring grip mechanism secures cables within the specified diameter range
• Square bisected bead style allows for easy installation on existing wiring
• Optimized for high-frequency noise suppression between 100 MHz and 1 GHz

Applications

• EMI shielding for round and flat cables
• Suppression of electromagnetic interference in data lines
• Noise reduction in communication equipment wiring

Procurement Notes

Verify the specific impedance value and physical dimensions against the official Leader Tech datasheet before integration. Confirm that the 12.7 mm internal diameter matches the target cable size. Ensure compliance with RoHS requirements as indicated in the product specifications. Check for any available adhesive pad options if permanent mounting is required instead of the standard snap fit.

Selection Notes

Select this model when a hinged ferrite core with a snap-fit closure is required for cables up to 12.7 mm in diameter. The 510 Ohm impedance at 700 MHz makes it suitable for applications targeting peak attenuation in the UHF range. Consider the square shape and bulk packaging format for assembly line integration. Compare with similar models like SS25B2037 if different inner diameters or colors are needed.

Part Context

This component belongs to the FerriShield series of ferrite clamp-on cores produced by Leader Tech. The SS25B2032 variant is part of the 25B family, characterized by its specific material formulation and geometric design. It is categorized under passive components and ferrites, specifically designed for cable shielding applications where non-invasive noise suppression is necessary.

Replacement Considerations

SS25B2037 serves as a color alternative with identical electrical characteristics but a different inner diameter specification.
