SS26V-050880

Overview

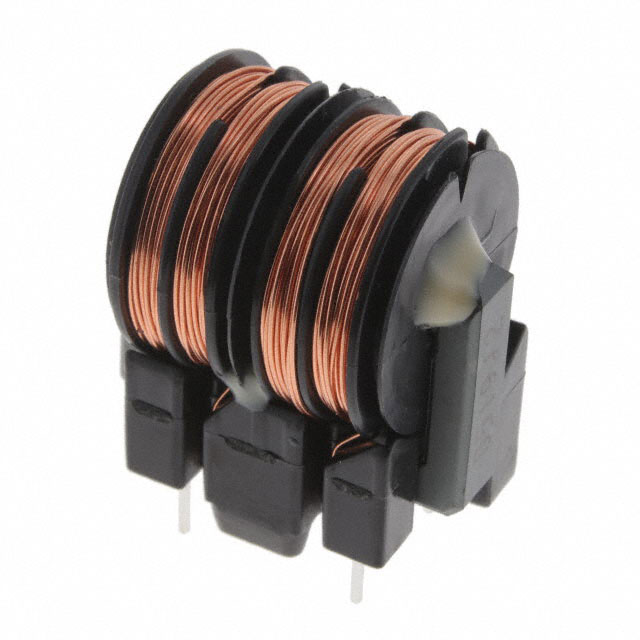

The KEMET SS26V-050880 is a common mode choke filter designed for electromagnetic interference suppression. It features an inductance of 88 mH and supports a DC current rating of 0.5 A with a maximum DC resistance of 2.4 Ohms. The component operates within a temperature range of -40°C to +125°C, ensuring reliability in demanding environments.

Feature Summary

• Provides effective common mode noise attenuation for signal and power lines
• Compact axial leaded construction facilitates easy through-hole mounting
• Robust core material maintains stable inductance under varying current loads

Applications

• Electromagnetic interference filtering in industrial control systems
• Noise suppression in automotive electronic modules
• Signal integrity protection in communication equipment interfaces

Procurement Notes

Verify the specific part number SS26V-050880 against manufacturer datasheets to confirm inductance and current ratings match design requirements. Ensure compatibility with PCB hole sizes and lead spacing. Check for RoHS compliance status if required by project specifications.

Selection Notes

Select this component when high inductance is needed for low-frequency noise suppression in compact spaces. Consider the 0.5 A current limit and 2.4 Ohm resistance for voltage drop calculations. Evaluate thermal performance at maximum operating temperatures to ensure long-term stability.

Part Context

This component belongs to KEMET's SS Coils series, which offers axial leaded common mode chokes. These filters are engineered for general-purpose EMI suppression where space constraints and cost-effectiveness are primary design drivers compared to larger toroidal or modular alternatives.
