SS26V-R060860

Overview

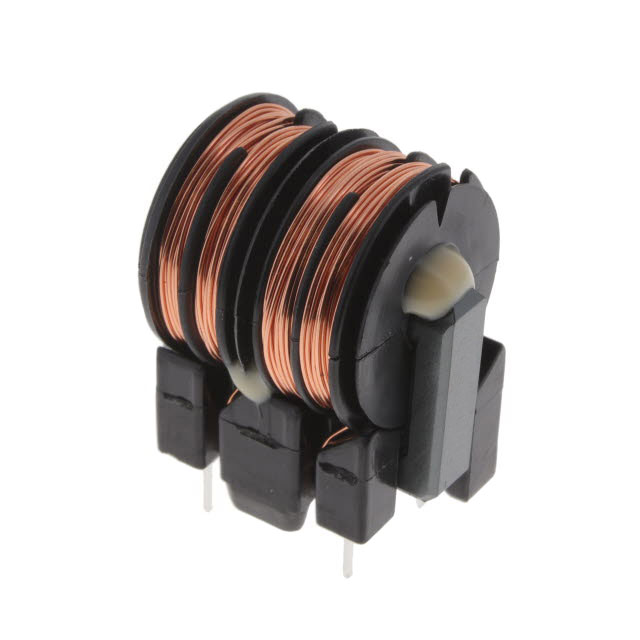

The KEMET SS26V-R060860 is a through-hole common mode choke designed for power line filtering applications. It features an inductance of 86 mH measured at 1 kHz and supports a maximum current rating of 0.6 A. The component utilizes proprietary ferrite materials suitable for frequencies greater than or equal to 150 kHz. It is constructed with two lines and employs a vertical mounting style.

Feature Summary

• Utilizes proprietary 5H and 10H ferrite materials for effective noise suppression
• Designed for operation in frequency ranges greater than or equal to 150 kHz
• Through-hole construction with vertical mounting orientation

Applications

• Power line filtering
• Common mode noise suppression
• Electromagnetic interference reduction in electronic circuits

Procurement Notes

Verify the specific datasheet version from KEMET to confirm exact DC resistance values and physical dimensions, as these parameters are critical for PCB layout and thermal management. Ensure the selected component matches the required current rating and inductance tolerance for the target application circuit design.

Selection Notes

Select this component when high inductance is required for low-frequency common mode noise attenuation in power supplies. The through-hole package offers robust mechanical stability compared to surface mount alternatives. Consider the operating temperature range and saturation characteristics when designing for varying load conditions.

Part Context

This part belongs to the KEMET SS26V series of common mode chokes. The series is characterized by the use of specialized ferrite cores to achieve high permeability and inductance values. These components are intended for general-purpose electromagnetic interference suppression in various electronic equipment.

Replacement Considerations

Consult official KEMET documentation for verified substitute part numbers within the SS26V series or equivalent product lines that match the 86 mH inductance and 0.6 A current specifications.
