SS28B2031

Overview

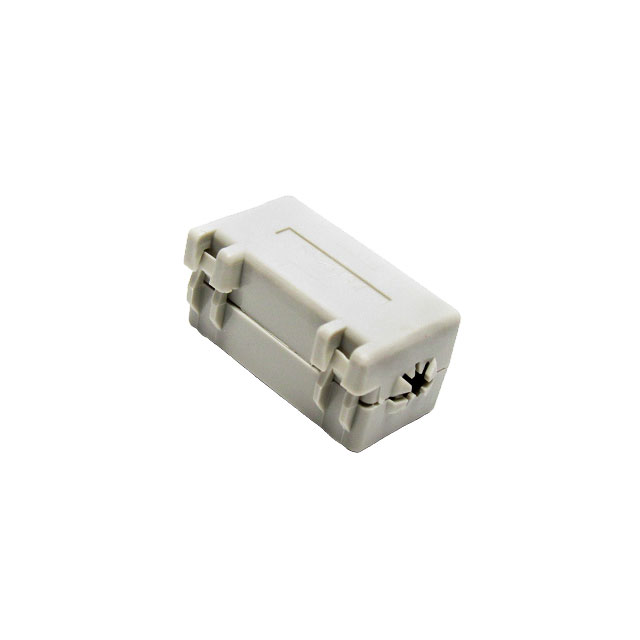

The SS28B2031 is a split-core ferrite component manufactured by Leader Tech Inc. It features a hinged snap-on design for cable bundle applications. The core material is designated as grade 28, providing an impedance of 200 ohms. The inner diameter measures 5.8 mm (0.228 inches), accommodating specific cable bundles. External dimensions are 31.90 mm in width and 17.80 mm in height. The unit utilizes a free-hanging mounting style.

Feature Summary

• Hinged snap-on construction allows for installation on existing cables without disconnection
• Split-core ferrite design facilitates rapid deployment on cable bundles
• Grade 28 material composition provides specified electromagnetic interference suppression

Applications

• Cable bundle electromagnetic interference reduction
• Free-hanging mounting configurations
• Snap-on ferrite core applications

Procurement Notes

Verify the exact impedance value and physical dimensions against the official datasheet before integration. Confirm that the 5.8 mm inner diameter matches the target cable bundle size. Ensure the split-core mechanism is suitable for the intended free-hanging application environment. Cross-reference the manufacturer part number to avoid confusion with similar family members.

Selection Notes

Select this component when a non-intrusive solution for cable bundles is required. The snap-on design eliminates the need to disconnect cables during installation. Verify compatibility with the operating frequency range and ensure the 200-ohm impedance meets the system's noise suppression requirements. Check mechanical constraints for the free-hanging form factor.

Part Context

This component belongs to the Leader Tech Ferrishield series of EMI suppression products. It is categorized under cable ferrites and passive components. The product line focuses on providing effective electromagnetic interference mitigation for electronic systems through specialized ferrite materials and mechanical designs.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
