SS28B2034

Overview

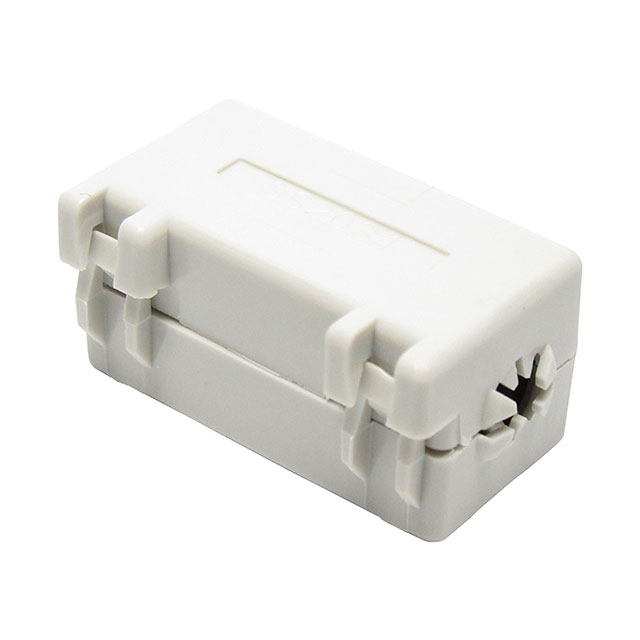

The SS28B2034 is a split-core ferrite clamp-on core manufactured by Leader Tech Inc. It features a box-shaped ferrite assembly fully enclosed in a nylon case with a hinge design for easy installation. The component provides an impedance of 220 Ohms at 100 MHz and utilizes Material 28. It has a circular inner diameter of 6.4 mm (0.251 inches) and external dimensions of 14.90 mm x 14.90 mm width and height, with a length of 31.80 mm (1.252 inches).

Feature Summary

• Hinged snap-fit design allows for quick installation around existing cables without disconnection.
• Fully enclosed nylon case protects the internal ferrite material and provides structural durability.
• Utilizes Material 28 composition to deliver specific high-frequency noise suppression characteristics.

Applications

• Suppression of electromagnetic interference on single cables or small bundles.
• EMI filtering for data transmission lines and communication cables.
• Noise reduction in industrial equipment wiring harnesses.

Procurement Notes

Verify the exact part number suffix when ordering, as variations may exist within the product line. Confirm that the required inner diameter matches the cable size, as the SS28B2034 specifies a 6.4 mm bore. Check RoHS compliance status if environmental regulations apply to your specific deployment environment.

Selection Notes

Select this component when a non-invasive, hinged ferrite solution is required for cables up to 6.4 mm in diameter. Ensure the application frequency range aligns with the 220 Ohm impedance specification at 100 MHz. Consider the physical enclosure constraints, as the external dimensions are approximately 14.9 mm square by 31.8 mm long.

Part Context

This component belongs to the Leader Tech EMI filter and suppression category, specifically within the ferrite clamp-on cores subcategory. It is designed for passive noise mitigation in electronic systems. The product is distinct from adhesive beads or saddle beads due to its snap-fit mechanical mounting method.

Replacement Considerations

The SS28B2034K is documented as a parameter-equivalent substitute. Verify dimensional compatibility and impedance curves before swapping, as manufacturing tolerances may vary between original and equivalent parts.
