SS28H-R10450-CH

Overview

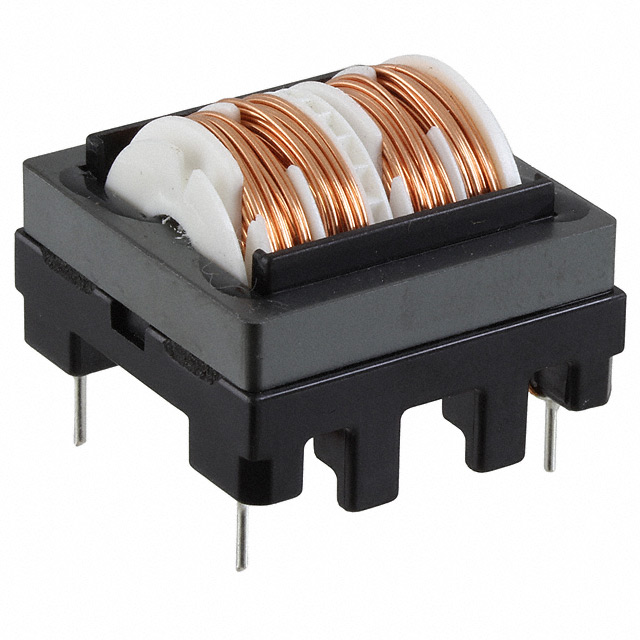

The KEMET SS28H-R10450-CH is a through-hole common mode choke belonging to the SS28V/H-CH series. It features a bobbin style construction with an inductance of 45 mH. The component is rated for a maximum current of 1 A and supports a voltage rating of 250 VAC. Designed for robust performance, it utilizes a common mode filtering topology suitable for power line noise suppression.

Feature Summary

• Through-hole bobbin construction for secure mounting
• Common mode filtering capability for noise suppression
• Rated for 1 A current handling capacity

Applications

• Power supply input filtering
• EMI noise suppression in AC lines
• General purpose common mode chokes

Procurement Notes

Verify the specific suffix CH against the manufacturer's latest datasheet to confirm material composition and compliance status. Ensure the 1 A current rating and 45 mH inductance align with the circuit requirements. Confirm that the through-hole package dimensions fit the target PCB layout without mechanical interference.

Selection Notes

Select this component when a 45 mH inductance at 1 A is required for common mode noise reduction. The 250 VAC rating suits standard mains applications. Consider the through-hole form factor if surface mount options are unsuitable for the mechanical stress or thermal environment of the design.

Part Context

This part belongs to the SS28V/H-CH series of common mode chokes from KEMET. These components are designed for general-purpose EMI suppression in power circuits. The series offers various inductance values and current ratings to accommodate different power line filtering needs across industrial and consumer electronics.

Replacement Considerations

Check TTI documentation indicating this part may be 'Not Recommended for New Designs'. Verify availability of direct substitutes within the SS28V/H-CH series or equivalent common mode chokes with matching 45 mH inductance and 1 A current ratings.
