SS28H-R20130-CH

Overview

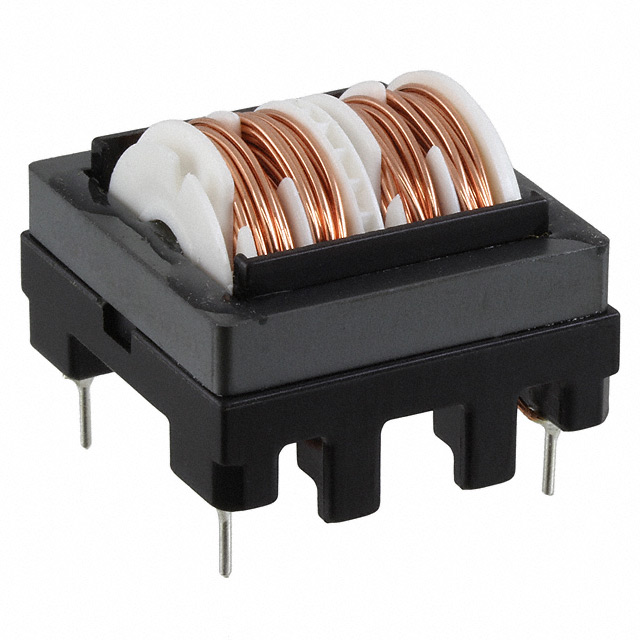

The KEMET SS28H-R20130-CH is a common mode filter choke designed for AC line applications. It features a vertical through-hole package with four PC pins and supports a current rating of 2A at 250VAC. The inductance is specified as 13mH measured at 1kHz, with a DC resistance (DCR) of 220mOhm.

Feature Summary

• Vertical through-hole construction with four-pin configuration
• Designed for AC line filtering applications
• High inductance value for effective noise suppression

Applications

• AC line filtering
• Common mode noise suppression
• Power supply input stages

Procurement Notes

Verify the component status carefully before procurement. This specific part number is classified as Not Recommended for New Designs (NRND). Engineers should consult the official datasheet for exact specifications and consider alternative components for new projects to ensure long-term availability and support.

Selection Notes

Select this component only if existing designs require the specific 13mH inductance and 2A current rating in a vertical through-hole form factor. Due to its NRND status, it is primarily suitable for maintenance or legacy system repairs rather than new product development where future supply stability is critical.

Part Context

This component belongs to KEMET's range of common mode chokes and filters. These passive components are essential for electromagnetic interference (EMI) suppression in electronic circuits. The SS28H series specifically targets AC line applications, providing robust noise filtering capabilities in a durable through-hole package suitable for industrial and consumer electronics.

Replacement Considerations

As this part is Not Recommended for New Designs, verify if newer equivalents from the same manufacturer or competitors offer similar electrical characteristics (13mH, 2A, 250VAC) and mechanical dimensions. Ensure any substitute maintains the required inductance and current handling capabilities.
