Product Detailed Parameters
- Description：CMC 4.5MH 2.5A 2LN TH
- Series：SS
- Mfr：KEMET
- Package：Bulk,Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2.5A
- DC Resistance (DCR) (Max)：160mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.181" L x 0.866" W (30.00mm x 22.00mm)
- Height (Max)：1.398" (35.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：4.5 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

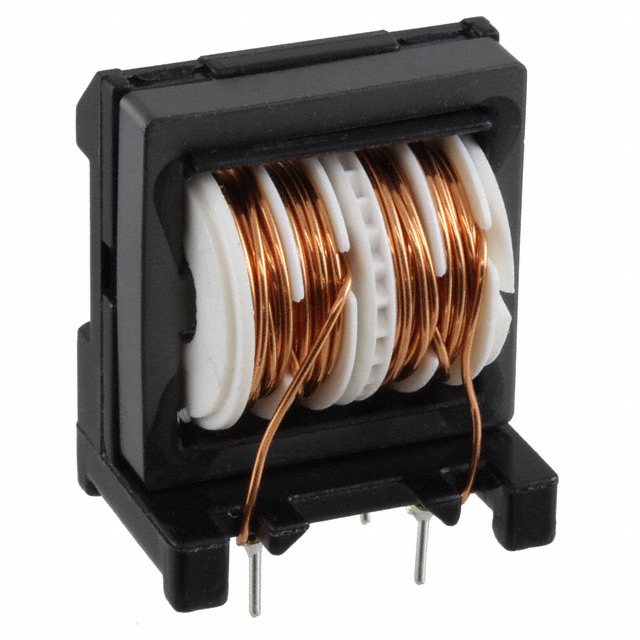

The KEMET SS28V-25045-CH is a through-hole common mode choke belonging to the SS28V/H-CH series. It features a bobbin style construction with an inductance of 4,500 uH. The component is designed for power applications and utilizes a standard through-hole mounting configuration.
Feature Summary
- Bobbin style construction for common mode noise suppression
- Through-hole mounting for PCB integration
Applications
- Power circuit filtering
Part Context
This component is part of the SS28V/H-CH series from KEMET, specifically categorized under common mode chokes for power applications.
