SS28V-K20115-CH

Overview

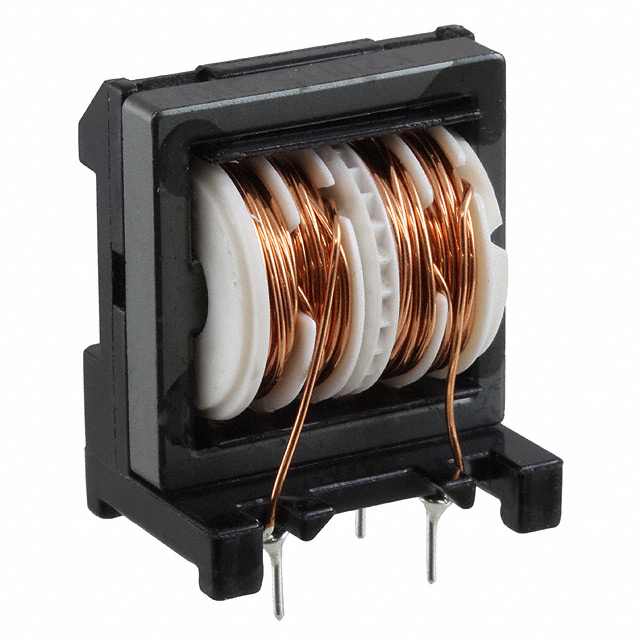

The SS28V-K20115-CH is a common mode choke manufactured by KEMET, designed for through-hole mounting. It features a bobbin style construction and provides an inductance of 11.5 mH at 1 kHz. The component supports a current rating of 2A and has a voltage rating of 250VAC. It exhibits a DC resistance of 220mOhm. This filter is part of the SS28V/H-CH series.

Feature Summary

• Through-hole bobbin construction
• Common mode filtering capability
• High inductance value

Applications

• Power supply noise suppression
• EMI filtering in electronic circuits
• Signal integrity protection

Procurement Notes

Verify the NRND (Not Recommended for New Designs) status before procurement. Confirm that the through-hole package and 250VAC/2A ratings align with system requirements. Ensure compatibility with existing PCB layouts and thermal management strategies. Check for updated datasheets to confirm electrical characteristics and mechanical dimensions.

Selection Notes

Select this component when through-hole mounting is required for common mode noise reduction. Consider the 11.5 mH inductance and 2A current rating for appropriate circuit applications. Evaluate the 220mOhm DC resistance for power loss considerations. Verify voltage ratings against operational conditions.

Part Context

This component belongs to the SS28V/H-CH series of common mode chokes from KEMET. These filters are engineered for robust performance in various electronic applications. The series offers reliable noise suppression capabilities through its specific design parameters.

Replacement Considerations

No public confirmed substitute part numbers are available.
