SS30V-100530

Overview

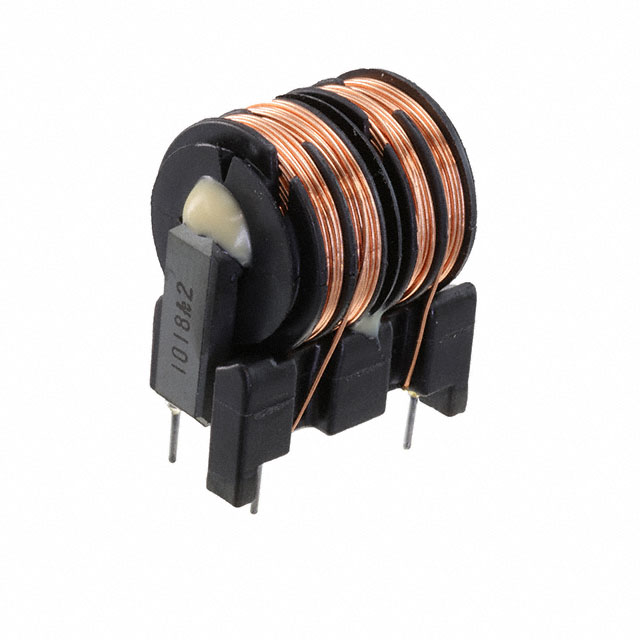

The KEMET SS30V-100530 is an AC line filter common mode choke designed for power line noise suppression. It features a rectangular core construction optimized for low to middle current applications ranging from 300mA to 5A. The component provides an inductance of 53 mH with a rated current of 1 A and a DC resistance of 1.1 Ohms. It operates within a temperature range of -25°C to +120°C and supports AC voltages up to 250 VAC.

Feature Summary

• Utilizes proprietary 5H and 10H ferrite materials suitable for frequencies greater than or equal to 150 kHz
• Features a rectangular core shape optimized for efficient noise filtering in compact designs
• Designed for robust performance in AC line filter applications requiring common mode noise reduction

Applications

• AC power line filtering
• Common mode noise suppression in electronic equipment
• Power supply input stages

Procurement Notes

Verify the specific manufacturer part number against official KEMET documentation to ensure compatibility with design requirements. Confirm that the operating conditions, including voltage, current, and temperature limits, align with the application specifications before procurement.

Selection Notes

Select this component for applications requiring common mode chokes with moderate inductance values. Ensure the circuit current does not exceed the 1 A rating and that the operating environment stays within the specified temperature range. Verify compatibility with the target frequency range for effective noise attenuation.

Part Context

This component belongs to the KEMET SS series of coils, which are characterized by rectangular cores and are suitable for low to middle current applications. The series offers various sizes and specifications to meet different filtering needs in power electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data.
