SS30V-120290

Overview

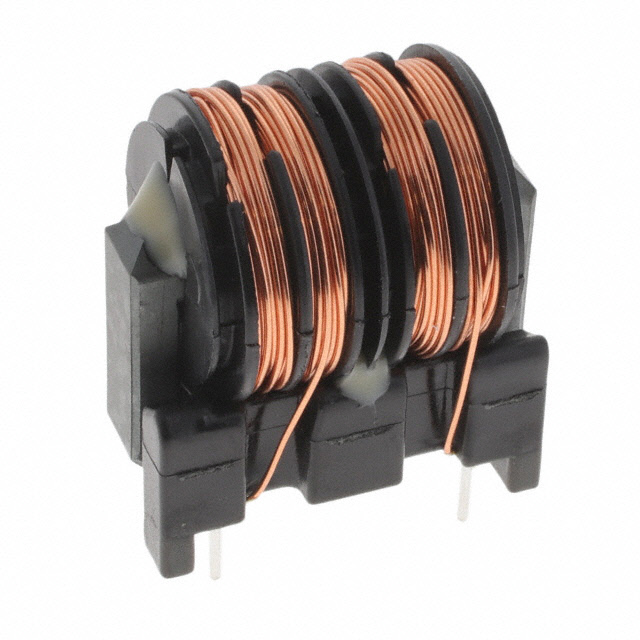

The KEMET SS30V-120290 is a radial leaded common mode choke belonging to the SS30V series. It features a rectangular core design optimized for low to middle current applications ranging from 300mA to 5A. The component provides an inductance of 29 mH with a maximum DC current rating of 1.2 A. It utilizes through-hole vertical mounting and operates within a temperature range of -40°C to +125°C.

Feature Summary

• Rectangular core geometry designed for efficient space utilization in power line filtering
• Through-hole vertical mounting style suitable for standard PCB assembly processes
• Common mode filtering capability for noise suppression on AC power lines

Applications

• AC power line input filtering
• EMI suppression in consumer electronics
• Industrial control equipment power stages

Procurement Notes

Verify the specific suffix against the official KEMET datasheet to ensure correct inductance and current ratings. Confirm RoHS compliance status and SVHC declarations as required by your supply chain regulations. Cross-reference the manufacturer part number with authorized distributor catalogs to avoid counterfeit components.

Selection Notes

Select this component when a 29 mH common mode inductance is required for 1.2 A circuits. Ensure the PCB layout accommodates the radial lead spacing and vertical height constraints. Consider the thermal performance at the maximum operating temperature of 125°C during circuit design.

Part Context

This part belongs to the KEMET SS30V series of common mode chokes. The series offers various inductance values tailored for different current requirements. These components are engineered for reliability in general-purpose power filtering applications across industrial and commercial sectors.

Replacement Considerations

Check for direct substitutes within the SS30V series with matching 29 mH inductance. Verify that alternative parts maintain the same 1.2 A current rating and physical footprint compatibility.
