Product Detailed Parameters
- Description：CMC 20MH 1.5A 2LN TH
- Series：SS
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.5A
- DC Resistance (DCR) (Max)：500mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.220" L x 0.886" W (31.00mm x 22.50mm)
- Height (Max)：1.299" (33.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：20 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

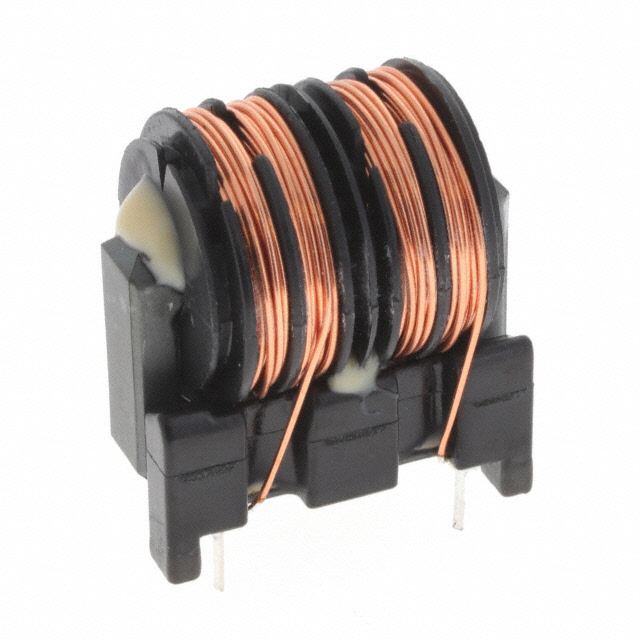

The KEMET SS30V-150200 is a common mode choke designed for electromagnetic interference suppression. It features an inductance of 20 mH and supports a current rating of 1.5 A with a DC resistance of 0.5 Ohms. The component is rated for 250 VAC operation. It utilizes a through-hole mounting configuration suitable for standard PCB assembly processes.
Feature Summary
- Provides effective common mode noise attenuation for power line applications
- Engineered to meet automotive reliability standards including AEC-Q200
- Constructed for stable performance under high voltage conditions
Applications
- Automotive power supply filtering
- Electromagnetic interference suppression in vehicle electronics
- Common mode noise reduction in AC/DC conversion stages
Procurement Notes
Verify the specific manufacturing date code and lot traceability upon order confirmation. Confirm that the delivered components match the exact part number designation, as suffix variations may indicate different packaging or testing criteria. Ensure storage conditions comply with manufacturer guidelines to maintain integrity before soldering.
Selection Notes
Select this component when designing circuits requiring robust common mode rejection at 250 VAC. The 20 mH inductance provides significant impedance to high-frequency noise while maintaining low series resistance. Consider the physical footprint and lead spacing requirements during PCB layout to ensure proper mechanical fit and electrical clearance.
Part Context
This component belongs to KEMET's range of passive filters intended for transportation solutions. The product line emphasizes safety-critical designs validated for harsh environments. It aligns with industry standards for automotive electronic stability and power management systems.
Replacement Considerations
No direct public substitute part numbers are confirmed for this specific model. Evaluate alternative common mode chokes based on matching inductance, current rating, and voltage specifications if sourcing constraints exist.
