SS30V-250070

Overview

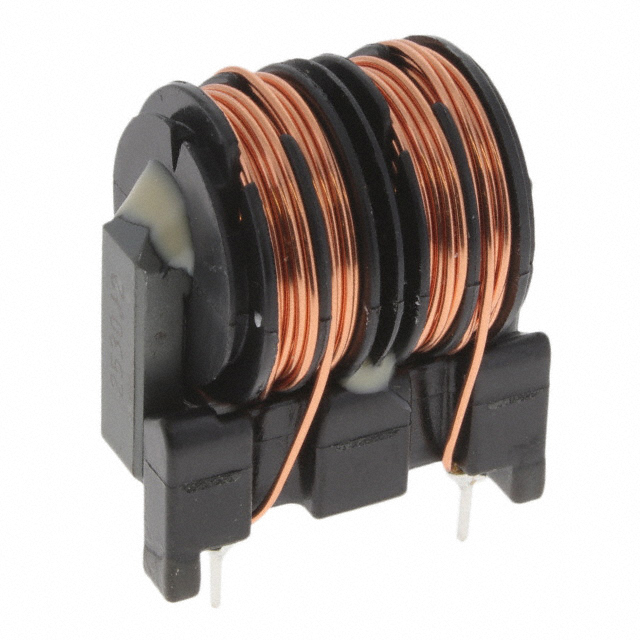

The KEMET SS30V-250070 is a common mode choke filter designed for AC line applications. It features an inductance of 7 mH and supports a continuous current of 2.5 A with a DC resistance of 0.16 Ohms. Rated for 250 VAC, this component utilizes a through-hole mounting style suitable for robust circuit integration. The device operates within a standard temperature range and meets relevant safety standards for electromagnetic interference suppression in power supply circuits.

Feature Summary

• Provides effective common mode noise attenuation for AC power lines
• Supports high continuous current handling capability
• Features low DC resistance to minimize power loss

Applications

• AC power input filtering
• Electromagnetic interference suppression
• Switching power supply stages

Procurement Notes

Verify the complete part number including suffixes against official manufacturer documentation to ensure correct specifications. Confirm that the required inductance, current rating, and physical dimensions match the target design constraints before finalizing procurement decisions.

Selection Notes

Select this component when designing AC line filters requiring specific common mode impedance characteristics. Ensure the operating environment stays within the specified thermal limits and that the mechanical footprint accommodates the through-hole installation requirements of the printed circuit board layout.

Part Context

This component belongs to KEMET's passive filter portfolio, specifically engineered for noise reduction in electrical systems. Common mode chokes are critical for maintaining signal integrity and compliance with regulatory emissions standards in electronic equipment powered by alternating current sources.

Replacement Considerations

Consult official KEMET substitution guides for verified alternatives. Ensure any replacement matches the 7 mH inductance, 2.5 A current rating, and 0.16 Ohm DC resistance parameters precisely.
