Product Detailed Parameters
- Description：CMC 3.6MH 3.5A 2LN TH
- Series：SS
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：3.5A
- DC Resistance (DCR) (Max)：100mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.220" L x 0.886" W (31.00mm x 22.50mm)
- Height (Max)：1.299" (33.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：3.6 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

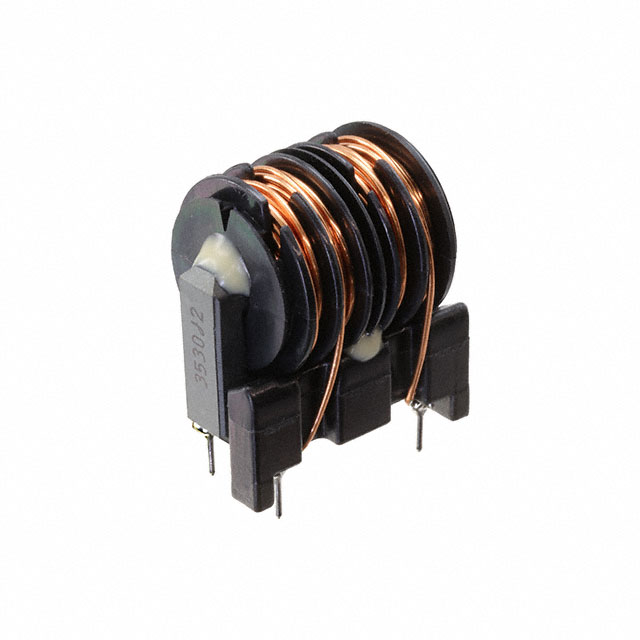

The KEMET SS30V-350036 is a through-hole common mode choke belonging to the SS30V series. It features a radial leaded bobbin construction designed for power line filtering applications. The component provides an inductance of 3.6 mH with a rated current capacity of 3.5 A and a DC resistance of 0.1 Ohms. It supports a voltage rating of 250 VAC. The device complies with RoHS standards, ensuring environmental safety for electronic assemblies requiring effective electromagnetic interference suppression.
Feature Summary
- Radial leaded through-hole bobbin construction for reliable PCB mounting
- Common mode filtering capability for power line noise suppression
- RoHS compliant manufacturing process
Applications
- Power supply input filtering
- Electromagnetic interference suppression in AC circuits
- General purpose common mode noise reduction
Procurement Notes
Verify the specific part number SS30V-350036 against official KEMET documentation to confirm technical specifications. Ensure compatibility with required inductance, current ratings, and mounting styles. Check for updated compliance certifications such as RoHS status before finalizing procurement decisions.
Selection Notes
Select this component when designing circuits requiring 3.6 mH common mode inductance at 3.5 A. Consider the radial leaded package for through-hole assembly processes. Evaluate the 0.1 Ohm DC resistance impact on circuit efficiency. Confirm that the 250 VAC rating meets the system voltage requirements.
Part Context
The SS30V series comprises common mode chokes manufactured by KEMET. These components are engineered for power electronics applications where noise filtration is critical. The series utilizes bobbin wound technology to achieve specified inductance values while maintaining low DC resistance characteristics suitable for high-current environments.
Replacement Considerations
Consult official KEMET substitution guides or datasheets for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' components without verifying electrical parameters and physical dimensions.
