Product Detailed Parameters
- Description：CMC 70MH 1A 2LN TH
- Series：SS
- Mfr：KEMET
- Package：Tray
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：1.1Ohm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-40°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.220" L x 0.886" W (31.00mm x 22.50mm)
- Height (Max)：1.299" (33.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：70 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

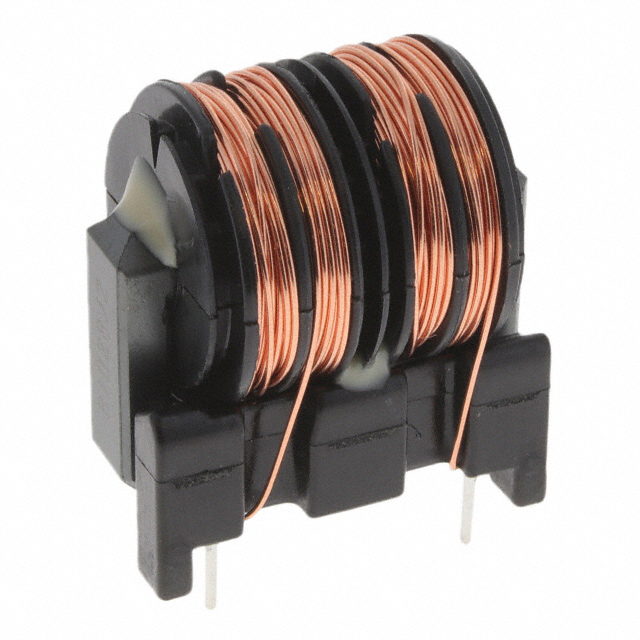

The KEMET SS30V-R100700 is a through-hole common mode choke designed for AC line filtering applications. It features an inductance of 70 mH and supports a maximum DC current of 1 A with a maximum DC resistance of 1.1 Ohms. The component operates within a temperature range of -25 °C to +120 °C and is tested at a frequency of 1 kHz. It utilizes proprietary ferrite materials suitable for frequencies greater than or equal to 150 kHz.
Feature Summary
- Utilizes proprietary 5H and 10H ferrite materials for effective noise suppression
- Designed for high permeability and ultra-high inductance performance
- Suitable for electromagnetic interference filtering in the ≥ 150 kHz range
Applications
- AC line filters
- Common mode noise suppression
- Power supply input stages
Procurement Notes
Verify the specific datasheet version and RoHS compliance status directly from the manufacturer before procurement. Confirm that the operating environment remains within the specified -25 °C to +120 °C temperature range to ensure long-term reliability. Ensure PCB layout accommodates the radial through-hole mounting style and physical dimensions provided in the official documentation.
Selection Notes
Select this component when designing circuits requiring common mode chokes with 70 mH inductance and 1 A current handling capability. It is appropriate for applications needing effective attenuation in the ≥ 150 kHz frequency spectrum. Consider the 1.1 Ohm DC resistance impact on circuit efficiency during selection.
Part Context
This part belongs to the KEMET SS30V series, which includes various sizes and specifications of common mode chokes. The series leverages nanocrystalline metal cores and toroidal coil designs to provide robust EMI filtering solutions for industrial and commercial power electronics.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing board layouts and electrical requirements if considering alternative components.
