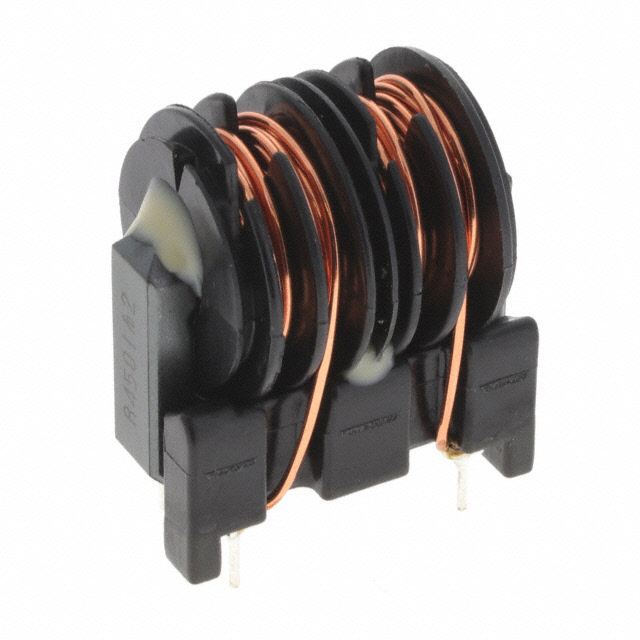

SS30V-R450017

$2.52

Description：CMC 1.7MH 4.5A 2LN TH
Series：SS
Mfr：KEMET
Package：Tray

SKU:90acc139128f Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.7MH 4.5A 2LN TH
Series：SS
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：4.5A
DC Resistance (DCR) (Max)：60mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.220" L x 0.886" W (31.00mm x 22.50mm)
Height (Max)：1.299" (33.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：1.7 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SS30V-R450017

Overview

The KEMET SS30V-R450017 is a radial leaded common mode choke belonging to the SS30V series. It features a through-hole bobbin construction designed for AC line filtering applications. The component provides an inductance of 1.7 mH with a maximum DC current rating of 4.5 A and a maximum DC resistance of 60 mOhms. It operates within a temperature range of -25°C to +120°C and supports a voltage rating of 250 VAC.

Feature Summary

Radial leaded through-hole mounting style
Common mode filtering capability
High current handling capacity

Applications

AC line filters
EMI suppression
Power supply input stages

Procurement Notes

Verify the manufacturer part number SS30V-R450017 against official KEMET documentation to confirm specifications. Ensure the selected component meets the required inductance, current rating, and thermal performance for the specific application environment before procurement.

Selection Notes

Select this component when designing circuits requiring robust common mode noise attenuation for AC lines. Consider the 4.5 A current rating and 60 mOhms DCR for power loss calculations. Verify that the through-hole package fits the target PCB layout and that the operating temperature range suits the installation environment.

Part Context

This component is part of the KEMET SS30V series of common mode chokes. These components are engineered for general-purpose EMI suppression in AC power applications. The series offers various inductance and current ratings to suit different power levels and filtering requirements.

Replacement Considerations

Consult KEMET's official cross-reference tools or datasheets for verified substitute part numbers. Ensure any replacement matches the 1.7 mH inductance, 4.5 A current rating, and physical dimensions.
