SS315ALH

Single Diodes Overview

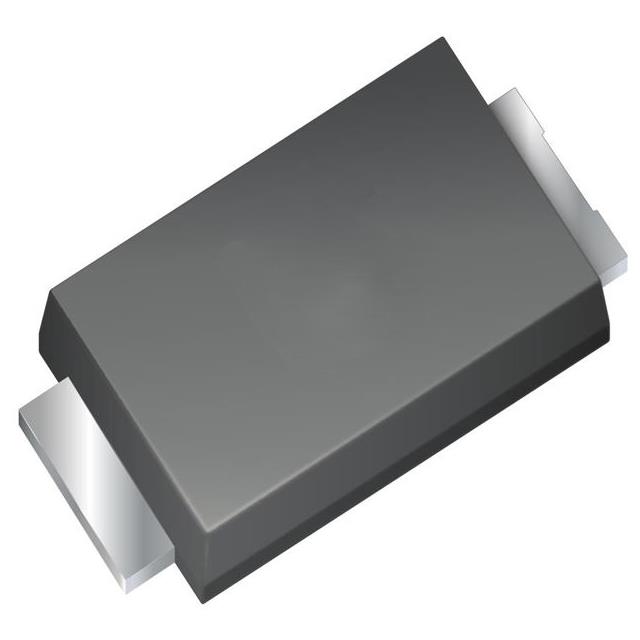

The SS315ALH is a surface mount Schottky barrier rectifier manufactured by Taiwan Semiconductor Corporation. It features an average forward rectified current of 3 Amperes and a maximum repetitive peak reverse voltage of 150 Volts. The device utilizes a low-profile SMBF package, which provides a compact footprint suitable for high-density board layouts. It is designed to offer superior switching characteristics compared to standard silicon rectifiers, ensuring minimal power loss during operation.

Single Diodes Feature Summary

• Schottky barrier construction for fast switching and low forward voltage drop
• Low profile SMBF package design for space-constrained applications
• High surge current capability for robust performance under transient conditions

Single Diodes Applications

• DC-DC converters in computing equipment
• Power supplies for portable devices
• Adapters and chargers for consumer electronics

Single Diodes Procurement Notes

Verify the specific suffix 'ALH' against the manufacturer's official datasheet to confirm exact marking codes and tape-and-reel specifications. Ensure compatibility with automated pick-and-place equipment regarding the SMBF package dimensions. Confirm RoHS compliance status through the latest production documentation provided by Taiwan Semiconductor.

Single Diodes Selection Notes

Select this component when a 3A current rating and 150V blocking voltage are required in a small surface-mount form factor. Consider the thermal management requirements associated with the SMBF package size. Evaluate the forward voltage characteristics against system efficiency targets compared to alternative rectifier technologies.

Single Diodes Part Context

This part belongs to the series of surface mount Schottky rectifiers offered by Taiwan Semiconductor. These components are engineered to replace bulkier through-hole diodes in modern electronic designs. The series focuses on providing reliable rectification with reduced parasitic effects for efficient power conversion.

Single Diodes Replacement Considerations

Check for direct pin-compatible alternatives from other manufacturers that meet the same 3A/150V SMBF specifications. Verify that any substitute maintains identical electrical parameters and physical dimensions to ensure seamless integration without redesigning the printed circuit board.
