Product Detailed Parameters
- Description：CMC 17MH 2A 2LN TH
- Series：SS
- Mfr：KEMET
- Package：Bulk,Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：2A
- DC Resistance (DCR) (Max)：280mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.457" L x 1.378" W (37.00mm x 35.00mm)
- Height (Max)：1.181" (30.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：17 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

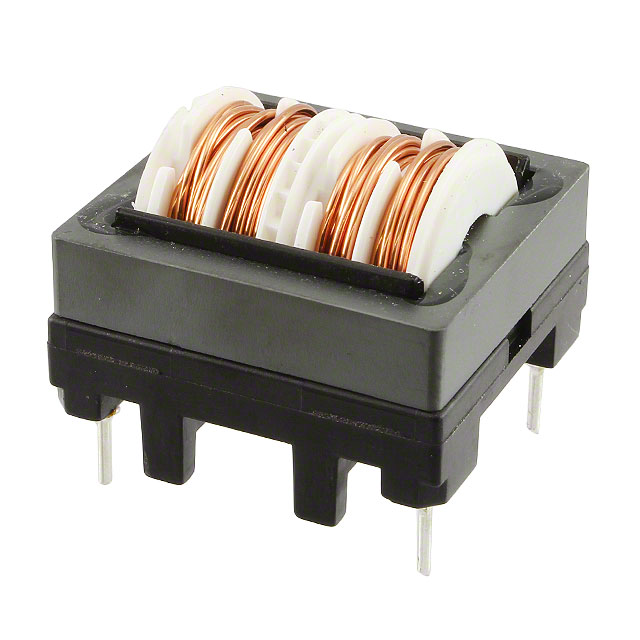

The KEMET SS35H-20170 is a standard common mode filter choke designed for AC line filtering applications. It features an inductance of 17 mH and supports a DC current rating of 2 A with a maximum DC resistance of 0.28 ohms. The component operates within a temperature range of -25°C to +120°C and is rated for 250 VAC. Its physical dimensions include a length of 37 mm and a height of 30 mm, classifying it as a standard common mode filter type.
Feature Summary
- Provides effective common mode noise suppression for AC line circuits
- Supports continuous DC current up to 2 A
- Rated for operation at voltages up to 250 VAC
Applications
- AC line input filtering
- EMI suppression in power supplies
- General purpose noise reduction in electronic equipment
Procurement Notes
Verify the specific part number SS35H-20170 against official KEMET documentation to confirm electrical ratings and mechanical dimensions. Ensure compatibility with system voltage and current requirements before integration. Check for any updated environmental compliance statements or packaging variations in the latest datasheet revision.
Selection Notes
Select this component when a 17 mH inductance and 2 A current handling capability are required for common mode noise attenuation. Consider the operating temperature range of -25°C to +120°C for environmental suitability. Evaluate the physical size constraints given the 37 mm length and 30 mm height dimensions.
Part Context
The SS35H series represents KEMET's standard common mode filter chokes. These components are engineered for robust performance in AC line filtering scenarios. The SS35H-20170 variant specifically offers 17 mH inductance, balancing noise suppression effectiveness with current carrying capacity for general industrial and commercial applications.
FAQ
What is the maximum DC current rating for the SS35H-20170?
The maximum DC current rating is 2 A.
What is the inductance value of this common mode choke?
The inductance is 17 mH.
