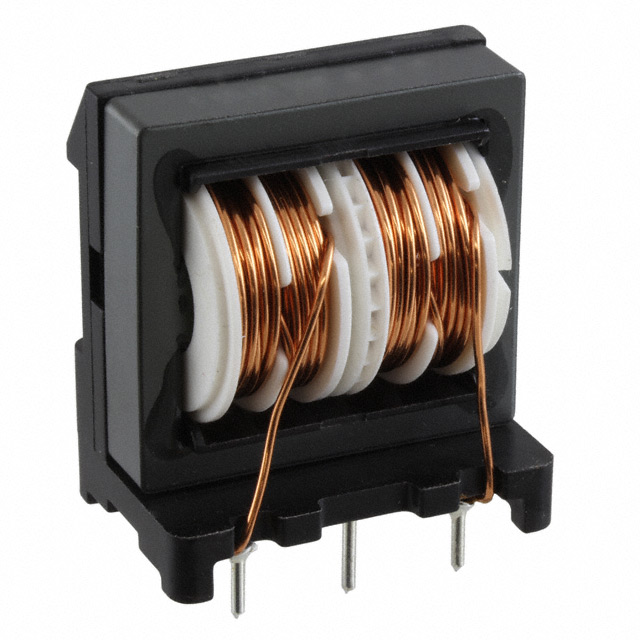

SS35V-30082

$2.44

Description：CMC 8.2MH 3A 2LN TH
Series：SS
Mfr：KEMET
Package：Bulk

SKU:e65b64f2d2c2 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 8.2MH 3A 2LN TH
Series：SS
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：150mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.457" L x 1.043" W (37.00mm x 26.50mm)
Height (Max)：1.614" (41.00mm)
Package / Case：Vertical, 6 PC Pin
Inductance @ Frequency：8.2 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SS35V-30082

Overview

The KEMET SS35V-30082 is a common mode choke designed for electromagnetic interference suppression. It features dual chokes with an inductance of 8200uH, optimized for a frequency response of 1kHz. The component supports a current rating of 3A and operates at voltages up to 250VAC.

Feature Summary

Dual choke configuration for effective noise filtering
Optimized performance at 1kHz frequency response
High current handling capability

Applications

Electromagnetic interference suppression
Power line filtering
Signal integrity protection

Procurement Notes

Verify the manufacturer part number SS35V-30082 against official KEMET documentation to confirm specifications. Ensure compatibility with system voltage (250VAC) and current (3A) requirements. Check for AEC-Q200 or other relevant certifications if automotive use is intended. Confirm package type and mounting style match design constraints.

Selection Notes

Select this component when high inductance at low frequencies is required for common mode noise reduction. Consider the 3A current rating and 250VAC voltage limit during circuit design. Evaluate physical size constraints as it is a through-hole or surface mount component depending on specific variant details not fully detailed here.

Part Context

This component belongs to KEMET's SS Coils series, specifically the SS35V/H Type. It is categorized under Common Mode Filters/Chokes. The product is manufactured by KEMET Corporation and is available through distributors like Mouser Electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Consult KEMET technical support for equivalent components if direct replacement is needed.
