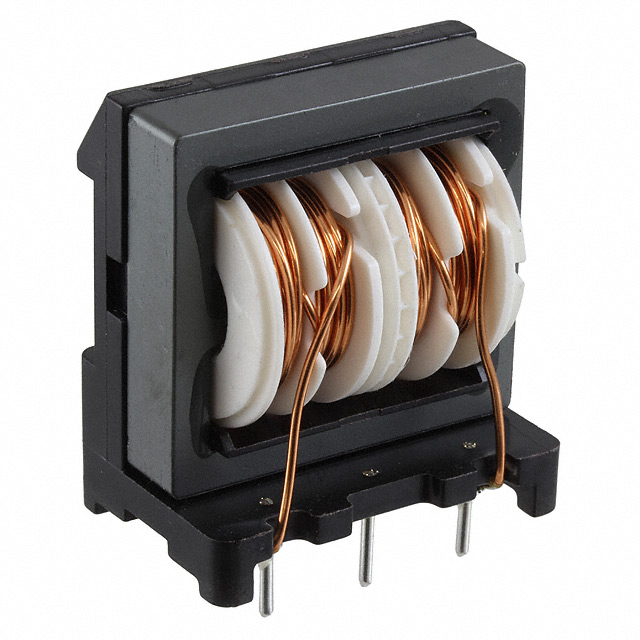

SS35V-45022

$1.52

Description：CMC 2.2MH 4.5A 2LN TH
Series：SS
Mfr：KEMET
Package：Bulk

SKU:000e2bff0997 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 2.2MH 4.5A 2LN TH
Series：SS
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：4.5A
DC Resistance (DCR) (Max)：60mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.457" L x 1.043" W (37.00mm x 26.50mm)
Height (Max)：1.614" (41.00mm)
Package / Case：Vertical, 6 PC Pin
Inductance @ Frequency：2.2 mH @ 1 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SS35V-45022

Overview

The KEMET SS35V-45022 is a through-hole common mode choke designed for signal line protection. It features an inductance of 2.2 mH measured at 1 kHz and supports a current rating of 4.5 A with a DC resistance of 60 mOhm. The component utilizes a two-wire configuration suitable for compact mounting. Its construction provides effective suppression of common mode noise while maintaining low insertion loss for differential signals in high-speed data applications.

Feature Summary

Provides effective common mode noise suppression for signal lines
Supports high current handling capability up to 4.5 A
Features low DC resistance for minimal signal attenuation

Applications

High-speed data interface protection
Signal line filtering in communication equipment
Noise suppression for USB or similar digital interfaces

Procurement Notes

Verify the specific inductance tolerance and saturation current characteristics against the official KEMET datasheet before finalizing the design. Ensure the through-hole footprint dimensions match the target PCB layout constraints. Confirm that the operating temperature range aligns with the environmental requirements of the end application to guarantee long-term reliability.

Selection Notes

Select this component when a robust through-hole solution is required for common mode interference on high-current signal lines. The 2.2 mH value offers a balance between noise attenuation and signal integrity for standard digital interfaces. Consider the physical size and lead spacing if space is limited, as through-hole implementations generally require more board area than surface-mount alternatives.

Part Context

This component belongs to the SS35V series of coils from KEMET, which are engineered for general-purpose electromagnetic interference suppression. The series is characterized by its ability to handle significant current loads while providing reliable noise filtration. These chokes are commonly integrated into systems requiring durable signal conditioning components.
