Product Detailed Parameters
- Description：CMC 9MH 1.3A 2LN TH
- Series：SS
- Mfr：KEMET
- Package：Bulk
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：1.3A
- DC Resistance (DCR) (Max)：380mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 130°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.866" L x 0.571" W (22.00mm x 14.50mm)
- Height (Max)：0.846" (21.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：9 mH @ 1 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

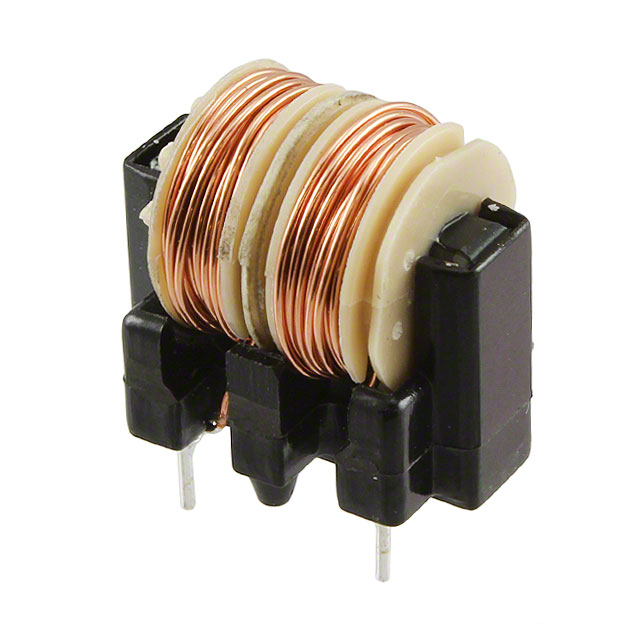

The KEMET SSB11V-R13090 is a through-hole common mode choke designed for AC line filtering applications. It features a single-channel configuration with an inductance of 9 mH measured at 1 kHz. The component supports a maximum DC current of 1.3 A and exhibits a maximum DC resistance of 380 mOhms. It operates within a temperature range of -25 °C to +130 °C and is rated for 250 V.
Feature Summary
- Provides effective common mode noise suppression for AC line circuits
- Utilizes a robust through-hole bobbin construction for secure PCB mounting
- Engineered for high reliability in commercial off-the-shelf applications
Applications
- AC line input filtering
- Power supply EMI suppression
- General electromagnetic interference reduction in electronic equipment
Procurement Notes
Verify the specific inductance value against the official datasheet, as some sources list 6 mH while others specify 9 mH for this part number. Confirm RoHS compliance status directly with the manufacturer documentation. Ensure the through-hole footprint dimensions match the target PCB layout requirements before finalizing procurement decisions.
Selection Notes
Select this component when a single-channel common mode choke is required for AC line applications. Consider the 1.3 A current rating and 380 mOhm DCR for power loss calculations. Verify that the operating temperature range of -25 °C to +130 °C meets the environmental conditions of the intended application.
Part Context
This component belongs to the SSB11V series of common mode chokes manufactured by KEMET. The series is characterized by through-hole bobbin construction suitable for general-purpose filtering. It serves as a passive component for mitigating electromagnetic interference in power circuits.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative components based on matching inductance, current rating, and physical footprint specifications.
