SSHB10HS-R11100

$1.44

Description：CMC 10MH 1.1A 2LN TH
Series：SSHB10HS
Mfr：KEMET
Package：Bulk

SKU:4d9b96f27c76 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 10MH 1.1A 2LN TH
Series：SSHB10HS
Mfr：KEMET
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：1.1A
DC Resistance (DCR) (Max)：350mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.866" L x 0.669" W (22.00mm x 17.00mm)
Height (Max)：0.610" (15.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：10 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SSHB10HS-R11100

Overview

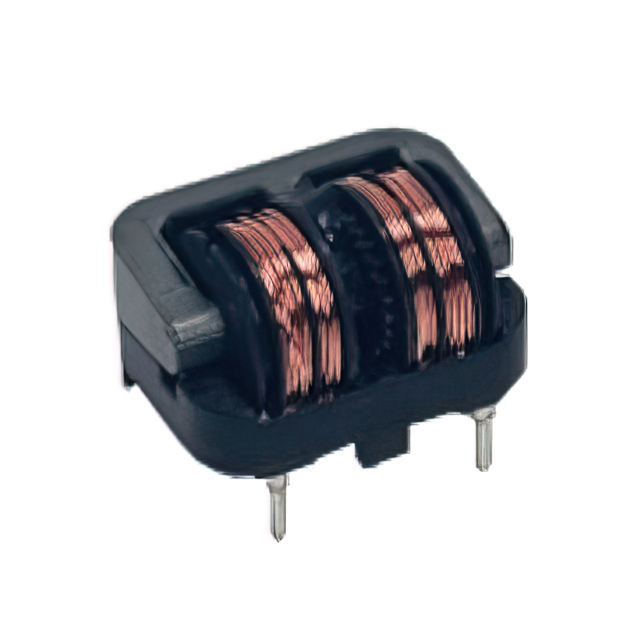

The KEMET SSHB10HS-R11100 is a dual-mode common mode choke from the SSHB10HS series, designed for through-hole mounting. It provides an inductance of 10 mH at a test frequency of 10 kHz and supports a maximum DC current of 1.1 A. The component features a low DC resistance of 350 mOhms and operates within a temperature range of -25°C to +120°C. Rated for 250 VAC, it utilizes a wide-range impedance type construction with dimensions of 22.0 mm length, 17.0 mm width, and 15.5 mm height.

Feature Summary

Dual-mode operation combining common mode and differential mode filtering capabilities
Wide-range impedance characteristics for effective noise suppression across varying frequencies
Through-hole axial leaded construction for secure PCB integration

Applications

Power supply input filtering
EMI suppression in AC/DC converters
Noise reduction in industrial control circuits

Procurement Notes

Verify the specific suffix R11100 confirms the 10 mH inductance and 1.1 A current rating. Confirm RoHS compliance status as documentation may vary by production lot. Ensure through-hole footprint compatibility with target PCB layout before ordering.

Selection Notes

Select this component when high inductance is required for both common and differential mode noise attenuation. The 1.1 A current rating suits moderate power applications. Verify thermal management requirements given the 50 K maximum temperature rise specification under load conditions.

Part Context

This part belongs to the KEMET SSHB10HS series of dual-mode chokes. These components are engineered for environments requiring robust EMI filtering without sacrificing differential signal integrity. The series offers various inductance values tailored for different power levels and noise profiles.

Replacement Considerations

Cross-reference with UALSB1SR111000 as a documented alias. Verify pinout and mechanical dimensions match existing board space constraints before substitution.
