SSHB21HS-30013

$2.06

Description：CMC 1.3MH 3A 2LN TH
Series：SSHB21HS
Mfr：KEMET
Package：Bulk

SKU:5eb72bb036b0 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.3MH 3A 2LN TH
Series：SSHB21HS
Mfr：KEMET
Package：Bulk
Filter Type：-
Number of Lines：2
Current Rating (Max)：3A
DC Resistance (DCR) (Max)：60mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 130°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：1.024" L x 0.906" W (26.00mm x 23.00mm)
Height (Max)：0.610" (15.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：1.3 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

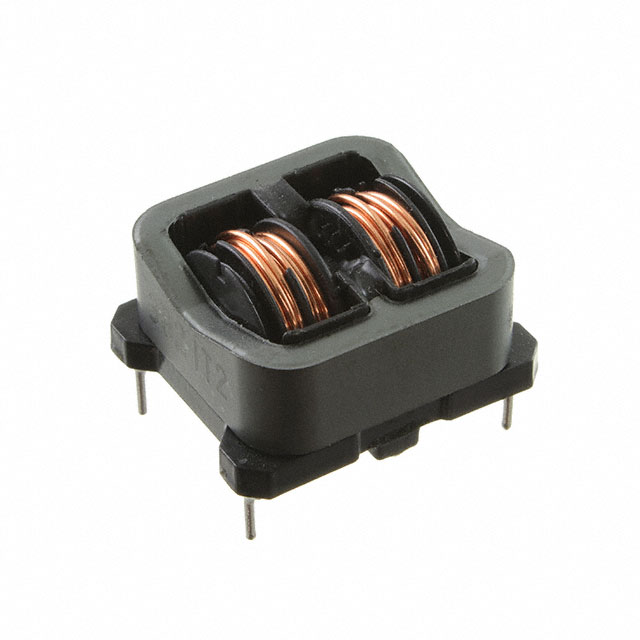

SSHB21HS-30013

Overview

The KEMET SSHB21HS-30013 is a dual-mode common mode filter choke designed for through-hole PCB mounting. It features an inductance of 1.3 mH and supports a maximum DC current of 3 A with a maximum DC resistance of 60 mOhms. Rated for 250 VAC, the component operates within a temperature range of -25°C to +120°C. Physical dimensions include a height of 15.5 mm, width of 23 mm, and length of 3.5 mm, with a core diameter of 26 mm.

Feature Summary

Dual-mode filtering capability for enhanced noise suppression
Through-hole vertical mounting for secure PCB integration
Ferrite core construction for high impedance performance

Applications

AC line filtering in power supply circuits
Electromagnetic interference suppression in electronic equipment
Common mode noise reduction in industrial control systems

Procurement Notes

Verify the specific part number SSHB21HS-30013 against official KEMET documentation to ensure compatibility with design requirements. Confirm that the dual-mode specification and electrical ratings match the intended application parameters before procurement.

Selection Notes

Select this component when dual-mode filtering is required for AC line applications. Ensure the 3 A current rating and 1.3 mH inductance align with circuit needs. Verify through-hole footprint compatibility and operating temperature range suitability for the target environment.

Part Context

This component belongs to the KEMET SSHB21HS series of common mode chokes. The series offers various inductance and current ratings for different power filtering applications. The SSHB21HS-30013 specifically provides a balance of high current handling and significant inductance for effective noise attenuation.

Replacement Considerations

Check for direct substitutes within the SSHB21HS series or other KEMET common mode choke lines with matching 1.3 mH inductance and 3 A current ratings. Verify pinout and physical dimensions to ensure mechanical compatibility without redesigning the PCB layout.
