Product Detailed Parameters
- Description：CMC 4.4MH 2.5A 2LN TH
- Series：SSHB21HS
- Mfr：KEMET
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：2.5A
- DC Resistance (DCR) (Max)：90mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.024" L x 0.906" W (26.00mm x 23.00mm)
- Height (Max)：0.610" (15.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：4.4 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

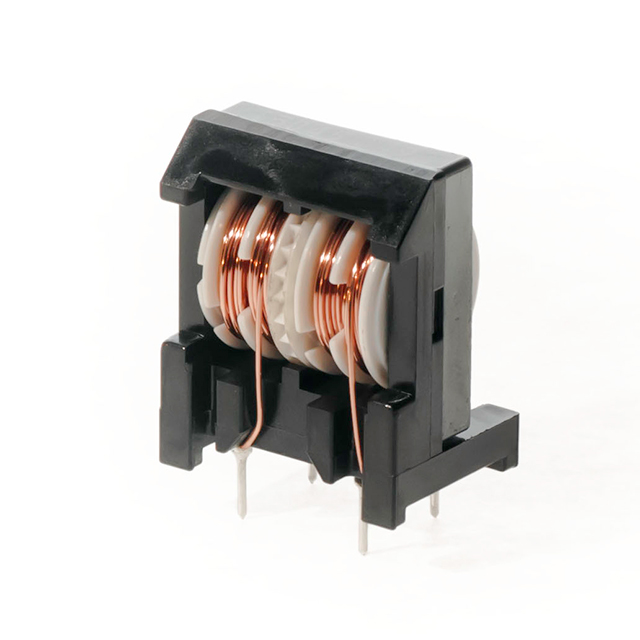

The KEMET SSHB21HS-R25044 is a commercial-grade common mode filter choke designed for AC line filtering applications. It features a dual-mode construction and supports through-hole PCB mounting. The component operates within a temperature range of -40°C to +130°C. Key electrical specifications include an inductance of 4.4 mH, a maximum DC current rating of 2.5 A, and a maximum DC resistance of 0.09 ohms. It is rated for 250VAC and tested at a frequency of 10 kHz.
Feature Summary
- Dual-mode common mode filtering architecture
- Through-hole PCB mounting configuration
- Wide operating temperature range capability
Applications
- AC line input filtering
- Commercial electronic equipment power stages
- EMI suppression in single-phase circuits
Procurement Notes
Verify the specific suffix 'R25044' against official KEMET documentation to confirm the exact inductance and current ratings. Ensure the through-hole footprint dimensions match the target PCB layout. Confirm RoHS compliance status via the latest datasheet revision before integration into regulated products.
Selection Notes
Select this component when a 4.4 mH inductance and 2.5 A current handling are required for common mode noise reduction. The wide temperature range makes it suitable for environments with thermal variability. Verify that the 0.09 ohm DC resistance meets the voltage drop constraints of the specific power supply design.
Part Context
This part belongs to the KEMET SSHB21HS series of common mode chokes. The series offers various inductance and current combinations tailored for AC line filtering. The R25044 designation specifically identifies the 4.4 mH variant within this product family.
Replacement Considerations
Cross-reference with other SSHB21HS variants if different inductance or current values are needed. Ensure any substitute maintains the same through-hole package and voltage rating.
