SSL-DSP5093USBC

LED Indication - Discrete Overview

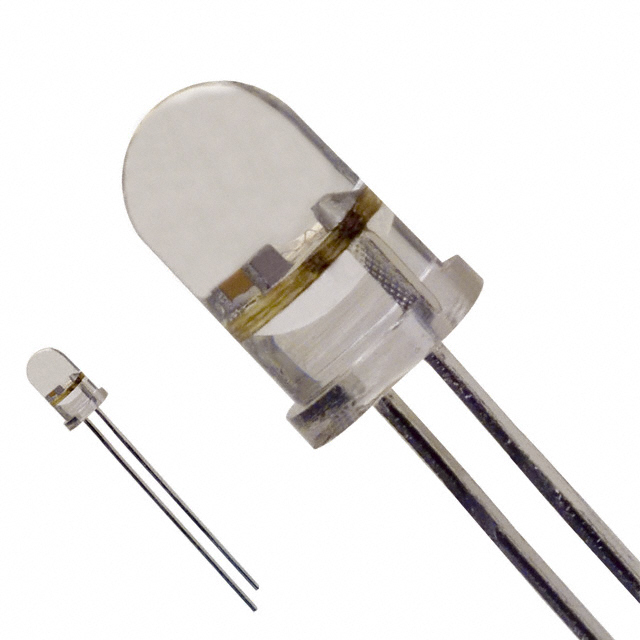

The SSL-DSP5093USBC is a blue, water-clear, through-hole LED from Lumex Opto/Components Inc. It features a T-1 3/4 (5mm) round package with a clear lens for high visibility. The component operates at a typical forward voltage of 2V to 3.5V and emits light at a peak wavelength characteristic of blue LEDs. Designed for radial mounting, it provides reliable indication in various electronic applications.

LED Indication - Discrete Feature Summary

• Blue emission with water-clear lens transparency
• T-1 3/4 (5mm) radial through-hole construction
• Standard single-color discrete configuration

LED Indication - Discrete Applications

• Panel status indicators
• Power supply signaling
• Electronic equipment front panels

LED Indication - Discrete Procurement Notes

Verify the specific forward voltage rating required for your circuit design, as sources indicate variations between 2V and 3.5V for this part number. Confirm the lead-free and RoHS compliance status directly with the manufacturer or authorized distributor before finalizing procurement specifications.

LED Indication - Discrete Selection Notes

Select this component when a standard 5mm through-hole blue indicator is needed. Ensure the driving circuit accommodates the specified forward voltage range. Consider the water-clear lens for maximum brightness compared to diffused alternatives.

LED Indication - Discrete Part Context

This part belongs to Lumex's SSL series of discrete LEDs. It is designed for general-purpose visual indication where a standard T-1 3/4 form factor is preferred over surface-mount options. The product line emphasizes reliability and compliance with environmental standards.

LED Indication - Discrete Replacement Considerations

Check for direct substitutes within the same series or similar T-1 3/4 packages from other manufacturers if availability is constrained. Verify pinout compatibility and electrical characteristics before substitution.
