SSL-LX100133USBD

LED Indication - Discrete Overview

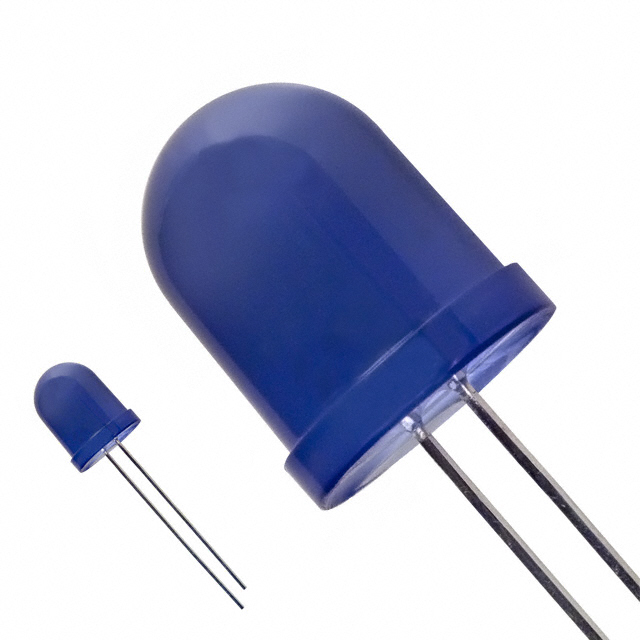

The SSL-LX100133USBD is a single-color blue LED manufactured by Lumex Opto/Components Inc. It features a T-10 mm (10 mm) radial through-hole package with a diffused lens. The component emits light at a peak wavelength of 470 nm and provides a luminous intensity of 300 mcd. It is designed for a maximum forward current of 25 mA and includes a built-in resistor configuration.

LED Indication - Discrete Feature Summary

• Integrated circuit protection via built-in resistor
• High visibility with diffused lens design
• Standard T-10 mm radial mounting format

LED Indication - Discrete Applications

• Panel indicator lighting
• Control board status display
• Electronic equipment visual signaling

LED Indication - Discrete Procurement Notes

Verify the specific suffix to confirm the presence of the built-in resistor, as this significantly alters electrical requirements compared to standard LEDs. Confirm availability status, as distribution channels may vary for discontinued or legacy components. Ensure the selected variant matches the required voltage drop characteristics for the target circuit design before finalizing procurement.

LED Indication - Discrete Selection Notes

Select this component when a self-limiting current solution is required for a 10 mm through-hole application. The built-in resistor simplifies driver circuitry by eliminating the need for external current-limiting resistors. Verify that the 470 nm blue emission meets the visual indication requirements and that the 300 mcd intensity is sufficient for the intended viewing distance and ambient lighting conditions.

LED Indication - Discrete Part Context

This part belongs to Lumex's SSL-LX100 series of high-power and specialized single-color LEDs. The series offers various configurations, including versions with built-in resistors or zener diodes, catering to different driving complexities. The SSL-LX100133USBD specifically addresses applications needing simplified wiring while maintaining standard radial footprint compatibility.

LED Indication - Discrete Replacement Considerations
