SSL-LX3044SOC

LED Indication - Discrete Overview

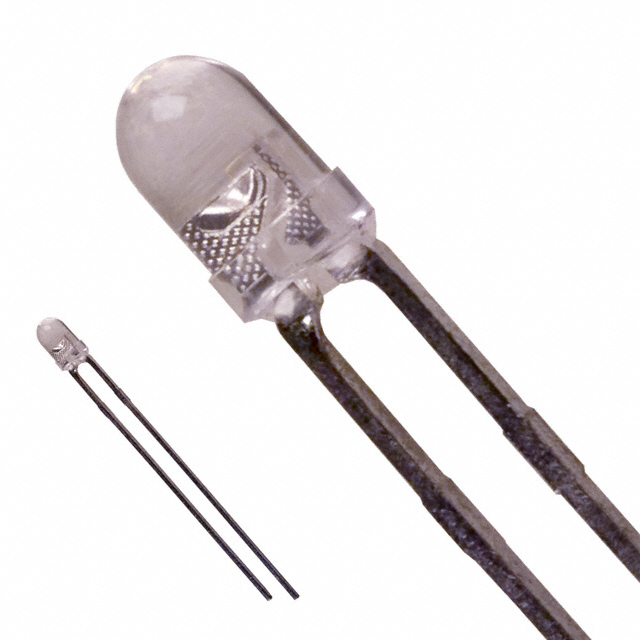

The SSL-LX3044SOC is a single-color orange light-emitting diode manufactured by Lumex Opto/Components Inc. It utilizes a T-1 (3 mm) radial through-hole package with a clear dome lens. The component emits at a peak wavelength of 620 nm and operates with a forward voltage of 2 V at a test current of 20 mA. It delivers an optical intensity of 1000 mcd with a viewing angle of 30 degrees. The device supports a peak current of 150 mA and withstands soldering temperatures up to 260°C. It complies with RoHS standards.

LED Indication - Discrete Feature Summary

• Features a high-intensity orange emission suitable for visual indication applications
• Utilizes a standard T-1 3mm radial through-hole package for easy integration
• Includes a clear dome lens design to maximize light output efficiency

LED Indication - Discrete Applications

• Panel status indicators
• Equipment power state signaling
• Control board visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturer specifications may undergo revisions. Confirm that the required orange color intensity meets the application's visibility needs under ambient lighting conditions. Ensure the selected variant matches the clear lens configuration rather than diffused options available in other models within the same series.

LED Indication - Discrete Selection Notes

Select this component when a bright orange indicator is required in a standard 3mm through-hole footprint. The clear lens provides higher luminous intensity compared to diffused variants, making it ideal for direct line-of-sight applications. Consider the 2V forward voltage drop when designing the current-limiting resistor network for the driving circuit.

LED Indication - Discrete Part Context

This part belongs to the SSL-LX3044 family of discrete LEDs from Lumex. The family offers various colors and lens treatments in the T-1 form factor. The SOC suffix specifically denotes the orange color and clear lens configuration, distinguishing it from other color or diffusion variations within the broader product line.

LED Indication - Discrete Replacement Considerations

Direct replacements include HLMP-K101 and HLMP-K150-C0002 from Broadcom Limited. These alternatives share similar electrical characteristics and mechanical dimensions, allowing for potential pin-compatible substitution in existing designs.
