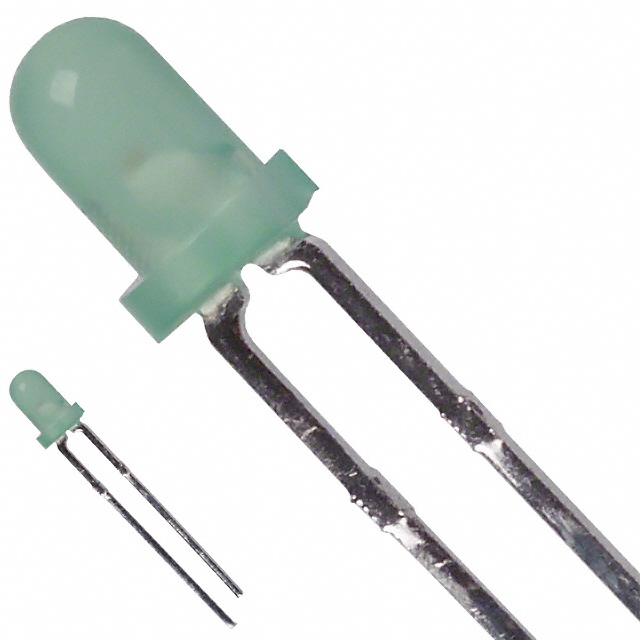

SSL-LX3052GD

$0.37

Description：LED GREEN DIFFUSED T-1 T/H
Series：-
Mfr：Lumex Opto/Components Inc.
Package：Bulk

SKU:43b1b589105f Category: LED Indication - Discrete Brand: Lumex Opto/Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SSL-LX3052GD is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lumex Opto/Components Inc.. Its product description is LED GREEN DIFFUSED T-1 T/H. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SSL-LX3052GD

Description：LED GREEN DIFFUSED T-1 T/H
Series：-
Mfr：Lumex Opto/Components Inc.
Package：Bulk
Color：Green
Configuration：Standard
Lens Color：Green
Lens Transparency：Diffused
Millicandela Rating：15mcd
Lens Style：Round with Domed Top
Lens Size：3mm, T-1
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：80°
Mounting Type：Through Hole
Wavelength - Dominant：-
Wavelength - Peak：565nm
Features：-
Package / Case：Radial
Supplier Device Package：T-1
Size / Dimension：-
Height (Max)：5.25mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SSL-LX3052GD

SSL-LX3052GD

LED Indication - Discrete Overview

The SSL-LX3052GD is a single-color green LED manufactured by Lumex Opto/Components Inc. It utilizes a T-1 (3 mm) through-hole package with a diffused dome lens. The component emits light at a peak wavelength of 565 nm. Key electrical parameters include a forward voltage of 2.2 V and a forward current rating of 20 mA, resulting in a power rating of 120 mW. The optical intensity is specified as 20 mcd with a viewing angle of 60 degrees. The device operates within a temperature range of -40 °C to +70 °C.

LED Indication - Discrete Feature Summary

Features a T-1 (3 mm) radial leaded package designed for standard through-hole mounting applications.
Incorporates a diffused dome lens configuration to provide a wide 60-degree viewing angle for indicator visibility.
Delivers consistent green illumination characterized by a 565 nm peak wavelength emission.

LED Indication - Discrete Applications

Panel status indicators
Equipment power state signaling
Control interface visual feedback

LED Indication - Discrete Procurement Notes

Verify the specific suffix GD against official Lumex documentation to confirm the exact optical intensity and wavelength tolerances. Ensure that the required forward current and voltage ratings align with the target circuit design constraints. Confirm RoHS compliance status if environmental regulations apply to the end product assembly process.

LED Indication - Discrete Selection Notes

Select this component when a standard 3 mm green indicator is required for through-hole PCB layouts. The diffused lens provides broad visibility suitable for general purpose signaling. Evaluate the 20 mcd intensity against ambient lighting conditions to ensure adequate signal perception during operation.

LED Indication - Discrete Part Context

This part belongs to the SSL-LX3052 series of single-color LEDs from Lumex. The series offers various color options including red, yellow, and green variants. All members share the same T-1 physical form factor and through-hole mounting characteristics, differing primarily in spectral output and intensity specifications.
