SSL-LX5093SRC/DU

LED Indication - Discrete Overview

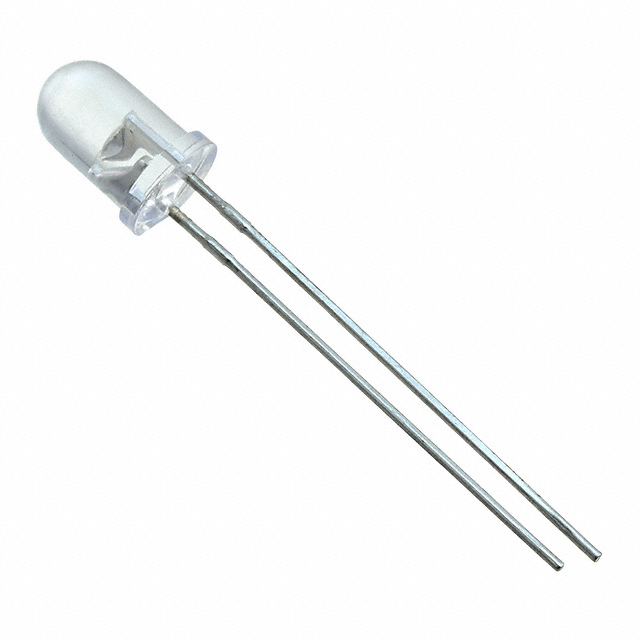

The SSL-LX5093SRC/DU is a single-color red LED from Lumex Opto/Components Inc. It features a T-1 3/4 (5 mm) through-hole package with a clear dome lens. The component emits light at a wavelength of 635 nm. It operates with a forward current of 20 mA and a forward voltage of 2.2 V. The optical intensity is rated at 40 mcd, with a power rating of 105 mW. The device has a viewing angle of 30 degrees and is supplied in bulk packaging.

LED Indication - Discrete Feature Summary

• Through-hole mounting style for standard PCB integration
• Clear dome lens design for focused light emission
• Standard T-1 3/4 (5 mm) axial leaded form factor

LED Indication - Discrete Applications

• Panel indicator lights
• Power status signaling
• Equipment operational feedback

LED Indication - Discrete Procurement Notes

Verify the exact suffix configuration against the manufacturer datasheet to ensure correct lens transparency and wavelength specifications. Confirm RoHS compliance status prior to procurement as regulatory requirements may vary by production batch. Check for obsolete status or end-of-life notifications from Lumex before finalizing supply chain plans.

LED Indication - Discrete Selection Notes

Select this component when a standard 5 mm through-hole red LED with clear optics is required. Ensure circuit design accommodates the 2.2 V forward voltage drop at 20 mA operating current. Consider the 30-degree viewing angle for visibility requirements. Verify thermal management capabilities within the 105 mW power rating constraints for the specific application environment.

LED Indication - Discrete Part Context

This part belongs to the SSL-LX5093 series of single-color LEDs manufactured by Lumex. The series includes variants with different lens colors, transparencies, and electrical characteristics. The SRC/DU designation specifically identifies the red color variant with a clear diffused lens option in the T-1 3/4 package format.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. The product listing indicates an obsolete status; consult official Lumex channels for current replacement recommendations.
