SSL-LX5093UWC/G

LED Indication - Discrete Overview

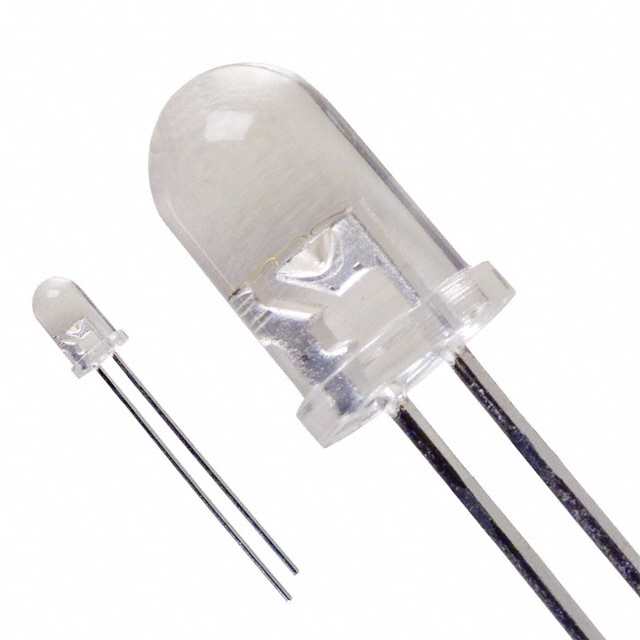

The SSL-LX5093UWC/G is a T-1 3/4 (5 mm) through-hole ultra-white LED manufactured by Lumex. It features a water clear dome lens and emits white light with a viewing angle of 15 degrees. The component operates at a forward voltage of 3.5 V and requires a forward current of 20 mA. It has a power rating of 110 mW and functions within a temperature range of -40 C to +85 C.

LED Indication - Discrete Feature Summary

• Emits ultra-white light in a standard 5 mm radial package
• Features a water clear dome lens for focused illumination
• Designed for high-intensity indication applications

LED Indication - Discrete Applications

• Panel indicator lights
• Status signaling in electronic devices
• Instrumentation displays

LED Indication - Discrete Procurement Notes

Verify the specific datasheet version for the SSL-LX5093UWC/G, as manufacturer documentation may vary slightly between distributors. Confirm that the component meets required RoHS compliance standards for your region. Ensure the ordering suffix matches the exact optical and electrical specifications needed for the design.

LED Indication - Discrete Selection Notes

Select this component when a narrow beam angle is required for visibility from a distance. The 15-degree viewing angle distinguishes it from wider-angle alternatives. Consider the 3.5 V forward voltage drop for circuit design compatibility. This part is suitable for applications requiring bright white indication in a standard through-hole footprint.

LED Indication - Discrete Part Context

This LED belongs to the QuasarBrite series, known for high brightness using advanced chip technology. The T-1 3/4 package is a standard industry form factor compatible with existing PCB layouts. Lumex utilizes multiple dice per package to enhance intensity compared to standard LEDs in the same category.

LED Indication - Discrete Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
