SSL-LXA228YC-TR11

LED Indication - Discrete Overview

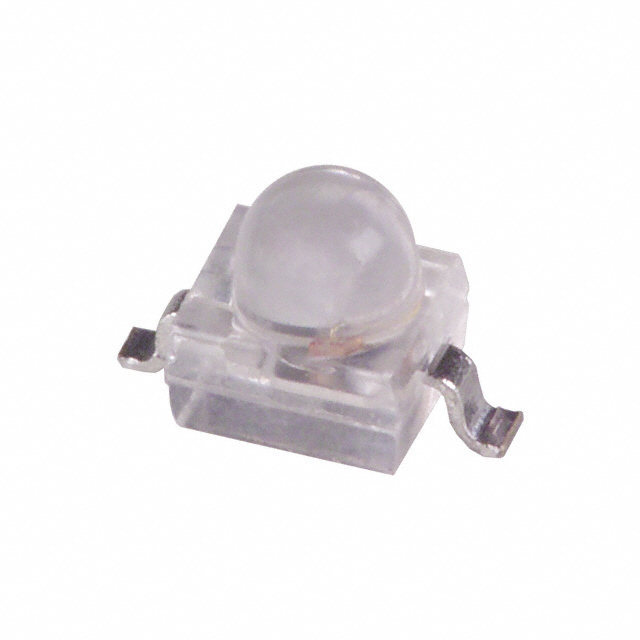

The SSL-LXA228YC-TR11 is a single-color red LED indicator from Lumex Opto/Components Inc., designed for surface-mount applications. It features a gull-wing lead configuration and emits light at a peak wavelength of 635 nm with a water-clear lens. The component operates with a forward voltage of 2.0 V and a forward current of 20 mA, producing an optical intensity of 30 mcd. Its physical dimensions are 2.5 mm in length, 2.0 mm in width, and a maximum height of 4.60 mm. The device has a viewing angle of 60 degrees and is housed in a radial package suitable for through-hole or surface-mount integration.

LED Indication - Discrete Feature Summary

• Utilizes a gull-wing lead design for secure surface-mount attachment
• Features a water-clear dome lens to maximize light transmission
• Provides standard red indication with a 60-degree viewing angle

LED Indication - Discrete Applications

• Panel status indicators
• Power supply signaling
• Electronic equipment front panels

LED Indication - Discrete Procurement Notes

Verify the specific suffix TR11 against the manufacturer's latest documentation to confirm packaging type and tape specifications. Ensure compatibility with reflow soldering profiles if using surface-mount assembly methods. Confirm RoHS3 compliance status directly with the supplier prior to procurement to meet environmental regulatory requirements for the target market.

LED Indication - Discrete Selection Notes

Select this component when a low-profile red indicator with gull-wing leads is required for space-constrained designs. Consider the 60-degree viewing angle and 30 mcd intensity for visibility needs. Evaluate the 2.0 V forward voltage drop against available drive circuitry to ensure proper current limiting resistor selection for reliable operation at 20 mA.

LED Indication - Discrete Part Context

This part belongs to the SSL-LXA228 series of axial LEDs manufactured by Lumex. The series offers various color options including yellow and green variants. The SSL-LXA228YC-TR11 specifically denotes the red color variant with clear lens optics. It is distinct from other packages in the family that may utilize different lead styles or lens tints.

LED Indication - Discrete Replacement Considerations

Potential substitutes include components with similar T-1 size, red color, and gull-wing leads. Verify electrical parameters such as forward voltage and luminous intensity match the original design requirements before substitution.
