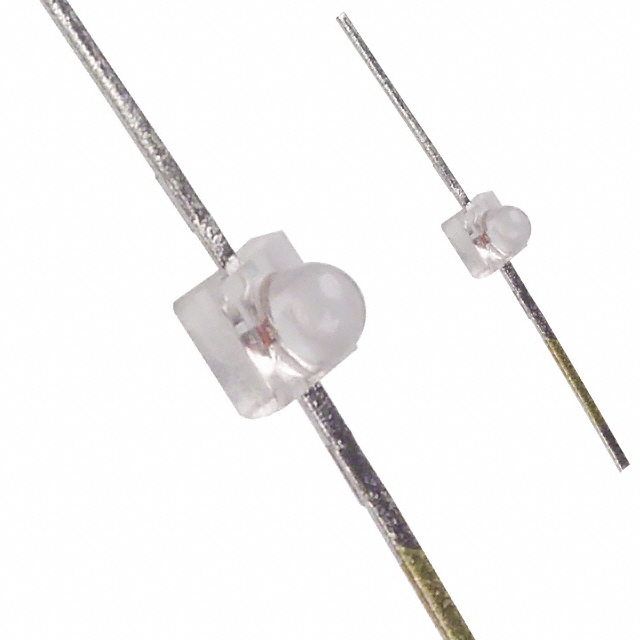

SSL-LXA228YC

Description：LED YELLOW CLEAR AXIAL T/H AXIAL
Series：-
Mfr：Lumex Opto/Components Inc.
Package：Bulk

SKU:2ec2fba8caa2 Category: LED Indication - Discrete Brand: Lumex Opto/Components Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SSL-LXA228YC is listed in the LED Indication - Discrete range at ChipApex. The manufacturer field lists Lumex Opto/Components Inc.. Its product description is LED YELLOW CLEAR AXIAL T/H AXIAL. Review the specifications below when checking this part for your BOM.

LED Indication - Discrete specifications for SSL-LXA228YC

Description：LED YELLOW CLEAR AXIAL T/H AXIAL
Series：-
Mfr：Lumex Opto/Components Inc.
Package：Bulk
Color：Yellow
Configuration：Standard
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：30mcd
Lens Style：Round with Domed Top
Lens Size：1.90mm Dia
Voltage - Forward (Vf) (Typ)：2.1V
Current - Test：20mA
Viewing Angle：25°
Mounting Type：Through Hole, Axial
Wavelength - Dominant：-
Wavelength - Peak：585nm
Features：-
Package / Case：Axial, Flat Leads
Supplier Device Package：Axial
Size / Dimension：2.50mm L x 2.00mm W
Height (Max)：2.80mm
Grade：-
Qualification：-

LED Indication - Discrete datasheet and documents for SSL-LXA228YC

SSL-LXA228YC

LED Indication - Discrete Overview

The SSL-LXA228YC is a single-color surface-mount LED manufactured by Lumex Opto/Components Inc. It emits yellow light with a peak wavelength of 585 nm and a nominal luminous intensity of 30 mcd. The device features a clear lens and operates at a forward current of 20 mA with a maximum forward voltage of 2.8 V. It has a viewing angle of 60 degrees and functions within a temperature range of -40 °C to +85 °C. The component is housed in a plastic SMT package with two pins, measuring 2.8 mm in total height.

LED Indication - Discrete Feature Summary

Surface mount construction for automated PCB assembly
Clear lens configuration for direct visibility
Yellow emission optimized for indicator applications

LED Indication - Discrete Applications

Electronic equipment status indicators
Control panel signal lights
Appliance front panel displays

LED Indication - Discrete Procurement Notes

Verify the specific suffix (e.g., TR31) against official documentation to confirm packaging type and availability. Confirm RoHS compliance status through manufacturer datasheets prior to integration. Ensure storage conditions account for moisture sensitivity levels defined in the product specifications.

LED Indication - Discrete Selection Notes

Select this component when a compact yellow surface-mount indicator is required. Consider the 60-degree viewing angle and 30 mcd intensity for visibility needs. Verify thermal limits align with the operating environment constraints of the target electronic system design.

LED Indication - Discrete Part Context

This part belongs to the SSL-LXA228 series of single-color LEDs from Lumex. The series offers various color options and lens types in a standardized SMD footprint. This specific model provides yellow illumination suitable for general-purpose signaling in consumer and industrial electronics.
