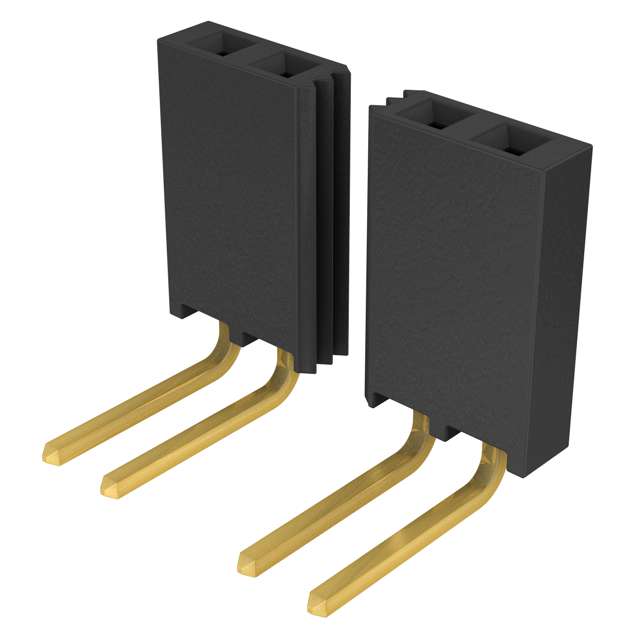

SSQ-120-03-S-S-RA

SSQ-120-03-S-S-RA is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN RCPT .100" 20POS R/A SGL AU. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for SSQ-120-03-S-S-RA

• Description：CONN RCPT .100" 20POS R/A SGL AU
• Series：SSQ
• Mfr：Samtec Inc.
• Package：Bulk
• Connector Type：Receptacle
• Contact Type：Forked
• Style：Board to Board or Cable
• Number of Positions：20
• Number of Positions Loaded：All
• Pitch - Mating：0.100" (2.54mm)
• Number of Rows：1
• Row Spacing - Mating：-
• Mounting Type：Through Hole, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Insulation Color：Black
• Insulation Height：0.095" (2.41mm)
• Contact Length - Post：0.300" (7.62mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：UL94 V-0
• Contact Finish - Post：Tin
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：-
• Voltage Rating：465VAC, 655VDC

Headers, Receptacles, Female Sockets datasheet and documents for SSQ-120-03-S-S-RA
