SSR10H-07330

Overview

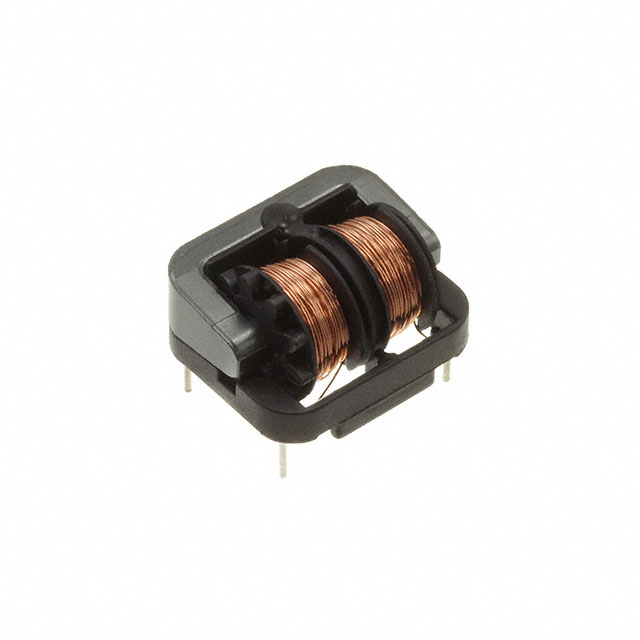

The KEMET SSR10H-07330 is a high impedance common mode choke designed for AC line filtering applications. It features an inductance of 33 mH at 10 kHz and supports a maximum DC current of 700 mA. The component has a maximum DC resistance of 900 mOhms and operates within a temperature range of -25°C to +120°C. Rated for 250VAC, it utilizes a ferrite core and is available in a vertical through-hole package with dimensions of 22.00mm x 16.00mm x 13.50mm.

Feature Summary

• High impedance common mode filtering for power lines
• Flexible lead termination options for PCB mounting
• Conformal coating for environmental protection

Applications

• AC power line EMI suppression
• Power supply input filtering
• Industrial equipment noise reduction

Procurement Notes

Verify the specific suffix codes against the official datasheet to ensure correct packaging and terminal configuration. Confirm RoHS compliance status and manufacturing origin prior to ordering. Check for any recent PCN notifications regarding material or process changes that may affect compatibility.

Selection Notes

Select this component when high inductance is required for low-frequency common mode noise attenuation. Ensure the operating current does not exceed 700 mA to prevent saturation. Verify that the physical footprint fits the PCB layout constraints and that the through-hole pitch matches the design requirements.

Part Context

This part belongs to the SSR10H series of AC line filters from KEMET. The series is characterized by high impedance values suitable for stringent EMI standards. These components are engineered for reliability in commercial and industrial power applications requiring robust noise suppression.

Replacement Considerations

Check for direct substitutes within the SSR10H series with different inductance values if current ratings differ. Verify cross-brand equivalents based on identical inductance, current rating, and physical dimensions.
