Product Detailed Parameters

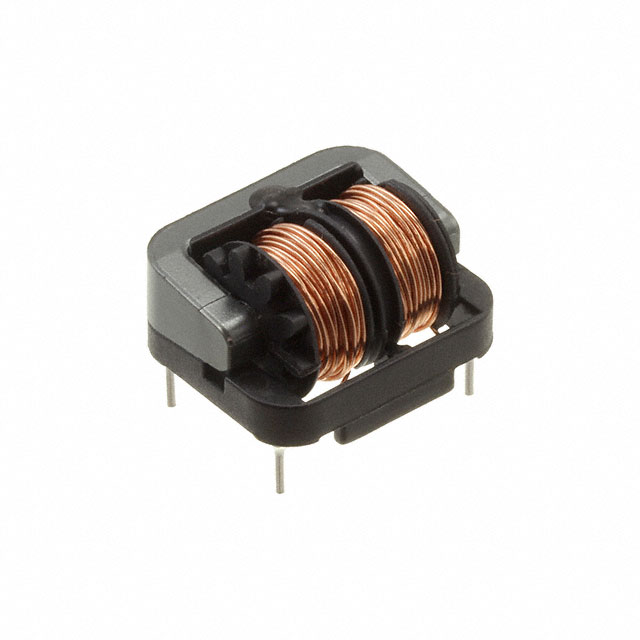

- Description：CMC 17MH 1A 2LN TH
- Series：SSR
- Mfr：KEMET
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：480mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.906" L x 0.906" W (23.00mm x 23.00mm)
- Height (Max)：0.531" (13.50mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：17 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview
The KEMET SSR10H-10170 is a through-hole common mode choke belonging to the SSR10H series. It features an inductance of 17 mH at a test frequency of 10 kHz and supports a maximum DC current of 1 A. The component has a maximum DC resistance of 0.48 Ω and operates within a temperature range of -40 °C to +120 °C. Designed for AC line filtering, it utilizes proprietary S15H ferrite material and a non-divided bobbin structure to achieve high permeability and large inductance in a compact form factor.
Feature Summary
- Utilizes proprietary S15H ferrite material for high permeability
- Employs a non-divided bobbin design to maximize inductance
- Constructed with UL 94 V-0 flame retardant materials
Applications
- AC line filtering
- Power supply noise suppression
Procurement Notes
Verify the specific part number against official manufacturer documentation to confirm technical specifications. Ensure compatibility with required operating temperatures and current ratings. Check for RoHS compliance status as indicated in the latest datasheet. Confirm package type and pin configuration match the target PCB layout requirements before finalizing procurement decisions.
Selection Notes
Select this component when high inductance is required in a low-profile through-hole package. The S15H ferrite core offers advantages for applications needing effective common mode noise attenuation. Consider the 1 A current rating and 0.48 Ω DCR limits during circuit design. Verify that the -40 °C minimum operating temperature meets environmental constraints.
Part Context
This component is part of the KEMET SSR10H series of common mode chokes. The series is characterized by high impedance performance and compact dimensions suitable for various power electronics applications. The SSR10H-10170 specifically provides 17 mH inductance, distinguishing it from other variants in the family with different inductance or current ratings.
Replacement Considerations
Consult official KEMET documentation for verified substitute part numbers. Cross-reference inductance, current rating, and physical dimensions when evaluating alternatives.
