SSR10HS-07265

Overview

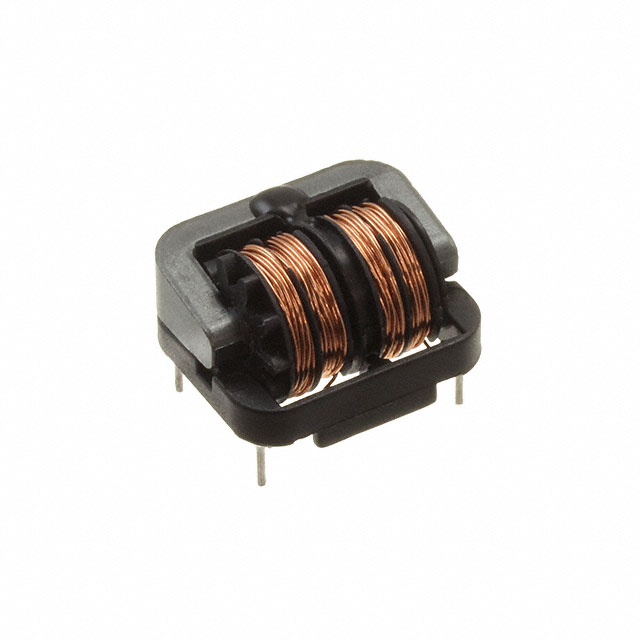

The KEMET SSR10HS-07265 is a common mode filter choke designed for through-hole PCB mounting. It features an inductance of 26.5 mH at 10 kHz and supports a maximum DC current of 700 mA with a DC resistance of 850 mOhms. Rated for 250 VAC, the component utilizes proprietary S15H ferrite material to achieve high permeability and wide frequency impedance. It operates within a temperature range of -25°C to +120°C and measures 18 mm in width, 13.5 mm in height, and 3.5 mm in length.

Feature Summary

• Utilizes proprietary S15H ferrite material for high permeability
• Provides high impedance across a wide frequency range due to divided bobbin design
• Compact vertical package with low profile and lightweight construction

Applications

• Power line filtering
• Common mode noise suppression
• AC line filters

Procurement Notes

Verify the specific part number SSR10HS-07265 against official KEMET documentation to confirm electrical parameters such as 26.5 mH inductance and 700 mA current rating. Ensure compatibility with through-hole assembly processes and check for RoHS compliance status in the latest datasheet before procurement.

Selection Notes

Select this component when high impedance common mode filtering is required for AC lines with currents up to 700 mA. The wide operating temperature range and compact form factor make it suitable for space-constrained power applications requiring effective noise suppression without excessive bulk.

Part Context

This component belongs to the SSR10HS series of common mode chokes from KEMET. The series is characterized by the use of specialized ferrite materials and divided bobbin structures to enhance performance in power electronics applications where common mode interference needs to be mitigated effectively.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
