SSR10V-05595

Overview

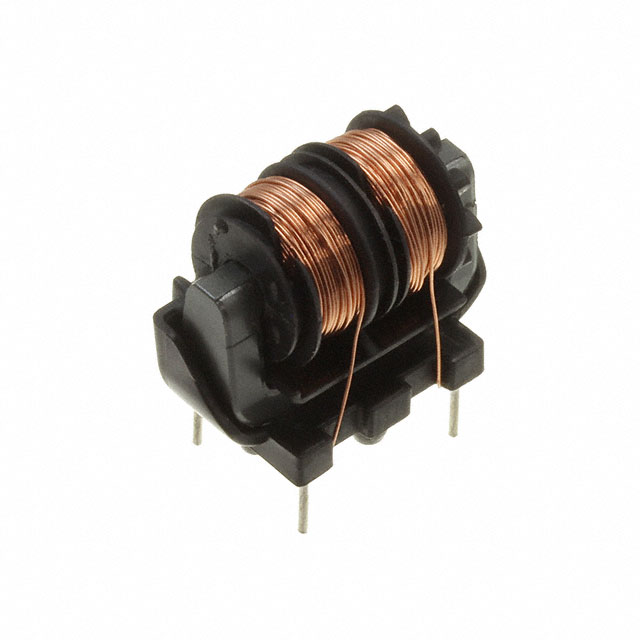

The KEMET SSR10V-05595 is a common mode choke designed for AC line filtering applications. It features an inductance of 59.5 mH and supports a maximum DC current of 0.5 A. The component has a maximum DC resistance of 1.7 Ω and operates within a temperature range of -25°C to +120°C. Rated for 250 VAC, it utilizes a ferrite core and is available in a through-hole PCB mount package.

Feature Summary

• Provides high impedance common mode noise suppression for AC power lines
• Utilizes a ferrite core material for effective electromagnetic interference filtering
• Designed for through-hole printed circuit board mounting

Applications

• Power supply input filtering
• AC line noise reduction
• Electromagnetic interference suppression in electronic equipment

Procurement Notes

Verify the manufacturer part number SSR10V-05595 against official KEMET documentation to confirm specifications. Ensure compatibility with required inductance, current rating, and thermal operating ranges for the specific application environment before procurement.

Selection Notes

Select this component when high inductance is required for common mode noise attenuation in AC circuits. Consider the 0.5 A current rating and 1.7 Ω DC resistance limits. Verify that the through-hole package style fits the target PCB layout and assembly process requirements.

Part Context

This component belongs to the KEMET SSR10VS series of common mode chokes. These coils are engineered with proprietary high permeability materials to deliver consistent filtering performance across various industrial and commercial power applications requiring robust EMI mitigation.

Replacement Considerations

SSR10V-04910 is a documented substitute within the same family, offering 91 mH inductance and 0.4 A current rating. Verify electrical parameter compatibility before substitution.
