Product Detailed Parameters
- Description：CMC 5.8MH 1.7A 2LN TH
- Series：SSR
- Mfr：KEMET
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：1.7A
- DC Resistance (DCR) (Max)：180mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.925" L x 0.512" W (23.50mm x 13.00mm)
- Height (Max)：0.827" (21.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：5.8 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

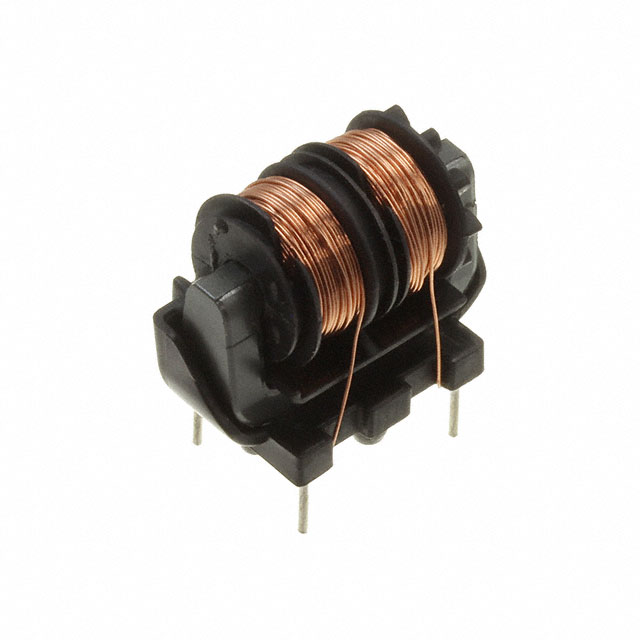

The KEMET SSR10V-17058 is a two-line common mode choke designed for AC line filtering applications. It features an inductance of 5.8 mH at 10 kHz and supports a maximum DC current of 1.7 A. The component has a maximum DC resistance of 180 mOhms and operates within a temperature range of -25°C to +120°C. Rated for 250 VAC, it utilizes proprietary S15H ferrite material with high permeability and a non-divided bobbin structure to achieve large inductance in a compact, low-profile through-hole package.
Feature Summary
- Utilizes proprietary S15H ferrite material for high permeability
- Non-divided bobbin design enables large inductance values
- Compact, low-profile, and lightweight construction
Applications
- AC line filtering
- Common mode noise suppression
- Electromagnetic interference (EMI) reduction in power supplies
Procurement Notes
Verify the specific part number SSR10V-17058 against official KEMET documentation to confirm electrical parameters such as 5.8 mH inductance and 1.7 A current rating. Ensure compatibility with through-hole mounting requirements and operating temperature ranges from -25°C to +120°C. Confirm RoHS compliance status if required by your manufacturing standards.
Selection Notes
Select this component when high impedance common mode rejection is required for AC lines up to 250 VAC. The 1.7 A current rating suits moderate power applications. The through-hole package facilitates easy integration into legacy or robust circuit designs. Consider the 180 mOhm DCR for power loss calculations in the specific circuit topology.
Part Context
This component belongs to the KEMET SSR series of common mode chokes. These coils are engineered with proprietary high permeability materials to provide effective noise filtering. The series offers various characteristics to suit different AC line filter needs, emphasizing compact size and performance in electromagnetic interference mitigation.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Consult KEMET technical support for equivalent components with matching inductance, current, and voltage ratings.
