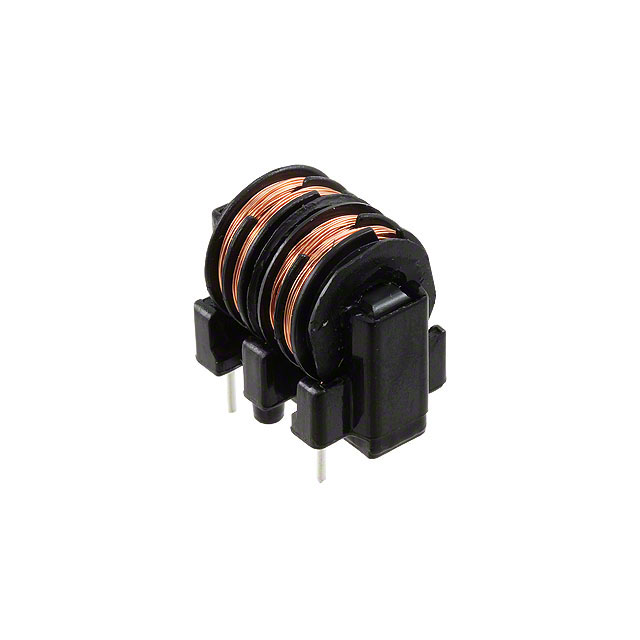

SSR10V-21038

$1.37

Description：CMC 3.8MH 2.1A 2LN TH
Series：SS
Mfr：KEMET
Package：Tray

SKU:529312bf4737 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 3.8MH 2.1A 2LN TH
Series：SS
Mfr：KEMET
Package：Tray
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2.1A
DC Resistance (DCR) (Max)：150mOhm
Voltage Rating - DC：-
Voltage Rating - AC：250V
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.925" L x 0.512" W (23.50mm x 13.00mm)
Height (Max)：0.827" (21.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：3.8 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SSR10V-21038

Overview

The KEMET SSR10V-21038 is a through-hole common mode choke designed for power line filtering. It utilizes proprietary S15H ferrite material to achieve high permeability and large inductance via a non-divided bobbin structure. The component offers a nominal inductance of 3.8 mH with a maximum DC resistance of 150 mOhms. It supports a maximum DC current of 2.1 A and operates within a temperature range of -25 °C to +120 °C.

Feature Summary

Proprietary S15H ferrite material provides high permeability for effective noise suppression
Non-divided bobbin design enables large inductance in a compact footprint
UL 94 V-0 flame rating ensures compliance with safety standards

Applications

Power supply input filtering
EMI suppression in AC/DC converters
Common mode noise reduction in industrial equipment

Procurement Notes

Verify the specific package configuration, as some distributor listings reference tray packaging while official specifications indicate through-hole mounting. Confirm that the required inductance value of 3.8 mH and current rating of 2.1 A align with your circuit design requirements before finalizing procurement.

Selection Notes

Select this component when high inductance is required in a low-profile form factor. The S15H ferrite material is suitable for applications demanding significant common mode noise attenuation. Ensure the operating environment stays within the specified -25 °C to +120 °C range to maintain performance integrity.

Part Context

This part belongs to the SSR10V series of common mode filters from KEMET. The series is characterized by its use of specialized ferrite materials and robust construction for reliable operation in demanding power electronics environments. It serves as a standard solution for EMI mitigation in various power conversion stages.
