Product Detailed Parameters
- Description：CMC 2.6MH 2.2A 2LN TH
- Series：SSR
- Mfr：KEMET
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：2.2A
- DC Resistance (DCR) (Max)：100mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.925" L x 0.512" W (23.50mm x 13.00mm)
- Height (Max)：0.827" (21.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：2.6 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

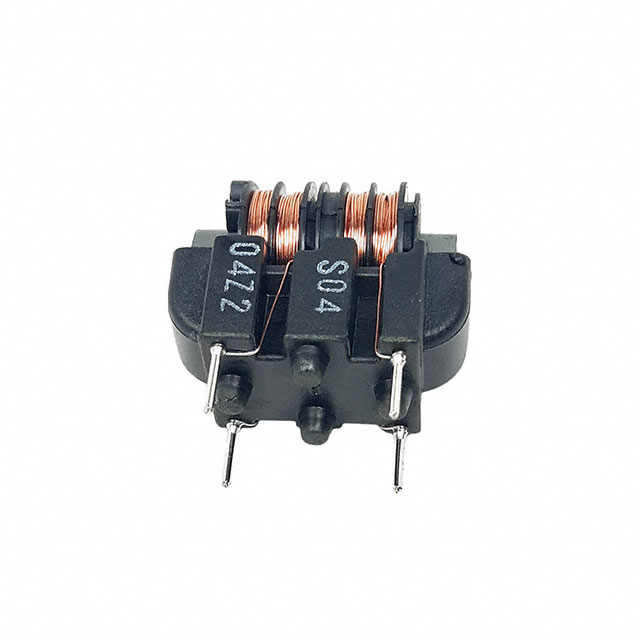

The KEMET SSR10VS-22026 is a through-hole common mode choke designed for AC line filtering applications. It features a ferrite core and provides an inductance of 2.6 mH at a test frequency of 10 kHz. The component supports a maximum DC current of 2.2 A with a low DC resistance of 100 mOhms. Rated for 250 VAC, it operates within a temperature range of -25°C to +120°C. The physical dimensions are 3.5 mm in length, 13 mm in width, and 21 mm in height, utilizing a single-channel configuration for compact PCB mounting.
Feature Summary
- High impedance common mode filtering capability using ferrite core technology
- Low DC resistance design optimized for compact power circuit layouts
- Through-hole termination style suitable for robust PCB integration
Applications
- AC line input filtering in power supplies
- Electromagnetic interference suppression in electronic equipment
- Common mode noise reduction in power circuits
Procurement Notes
Verify the specific suffix and manufacturer part number against official KEMET documentation to ensure correct electrical ratings and package type. Confirm RoHS compliance status and operating temperature range requirements match the target application environment before procurement.
Selection Notes
Select this component when a through-hole common mode choke with 2.6 mH inductance and 2.2 A current rating is required. Ensure the PCB layout accommodates the 21 mm height and 13 mm width dimensions. Verify that the 100 mOhm DC resistance meets the voltage drop constraints of the specific power stage design.
Part Context
This component belongs to the SSR10VS series of high impedance common mode filters manufactured by KEMET. The series utilizes ferrite cores to provide effective noise suppression in power applications. The SSR10VS-22026 variant specifically targets AC line filtering needs with defined inductance and current handling capabilities.
Replacement Considerations
SSR10HS-22026 shares similar electrical characteristics including 2.6 mH inductance and 2.2 A current rating but may differ in physical housing dimensions or specific material composition. Verify mechanical fit and thermal performance before substitution.
