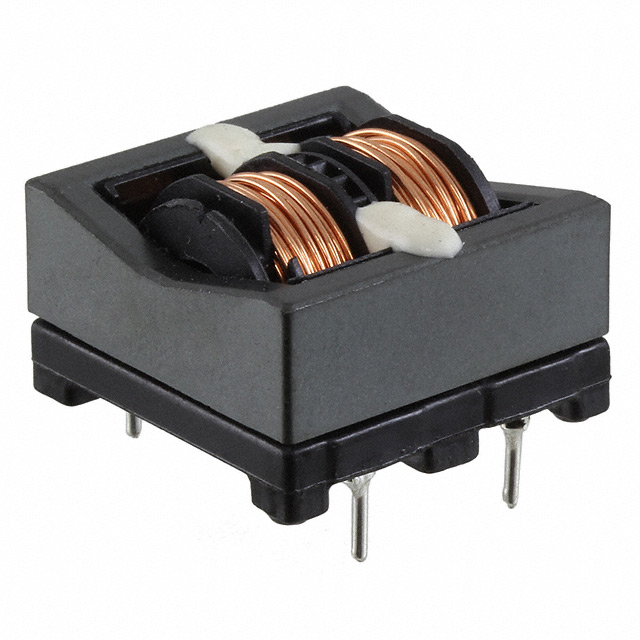

SSR21H-12150

$2.03

Description：CMC 15MH 1.2A 2LN TH
Series：SSR21H
Mfr：KEMET
Package：Bulk

SKU:d4306698fcd6 Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 15MH 1.2A 2LN TH
Series：SSR21H
Mfr：KEMET
Package：Bulk
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：1.2A
DC Resistance (DCR) (Max)：320mOhm
Voltage Rating - DC：250V
Voltage Rating - AC：-
Operating Temperature：-25°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.906" L x 0.906" W (23.00mm x 23.00mm)
Height (Max)：0.571" (14.50mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：15 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

SSR21H-12150

Overview

The KEMET SSR21H-12150 is a single-phase AC line filter designed for through-hole mounting. It features a high impedance common mode choke with an inductance of 15 mH at 10 kHz and a maximum DC resistance of 320 milliohms. The component supports a rated current of 1.2 A and operates within a voltage range up to 250 VAC. Physical dimensions are 23.0 mm in length, 23.0 mm in width, and 14.5 mm in height. It functions reliably across an operating temperature range from -25 °C to +75 °C.

Feature Summary

High permeability core construction for effective noise suppression
Compact low-profile design suitable for space-constrained applications
Through-hole termination for secure PCB integration

Applications

Audio-visual equipment
Office automation equipment
Digital electronic devices

Procurement Notes

Verify the specific part number suffix against official KEMET documentation to ensure correct electrical ratings and physical specifications. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer prior to ordering. Ensure the selected component matches the required thermal and current handling capabilities for the target circuit design.

Selection Notes

Select this component when a single-phase EMI filter with 15 mH inductance and 1.2 A current rating is required. Consider the through-hole mounting style and 250 VAC voltage rating for compatibility with existing board layouts. Evaluate the 320 milliohm DC resistance impact on power loss relative to system efficiency requirements.

Part Context

This component belongs to the KEMET SSR21H series of AC line filters. The series is characterized by compact, lightweight, and low-profile designs intended for common mode noise reduction. These filters utilize high permeability cores to provide high impedance filtering for sensitive electronic circuits.

Replacement Considerations

SSR21H-15083 and SSR21NH-M041500 are related components within the KEMET portfolio but differ significantly in inductance, current rating, and package type. Verify exact parameter matching before substitution.
