SSRH24NHS-30092

Overview

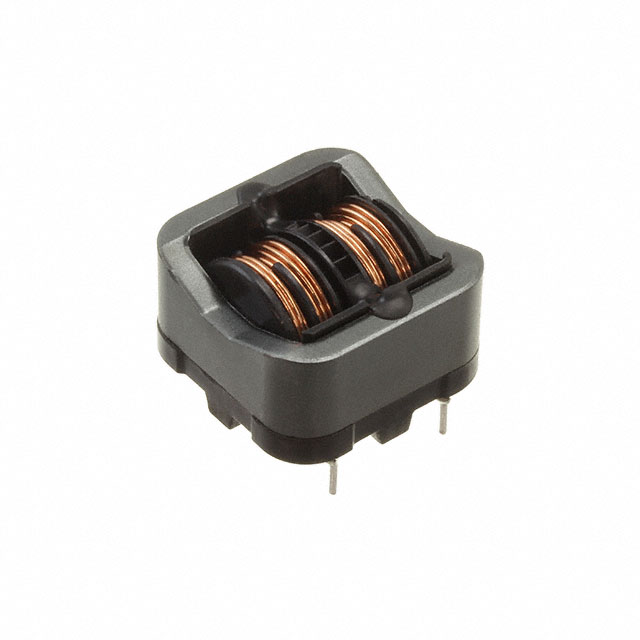

The KEMET SSRH24NHS-30092 is a through-hole common mode choke filter designed for AC line applications. It features an inductance of 9.2 mH and supports a current rating of 3 A with a DC resistance of 79 mΩ. The component operates within a temperature range of -25°C to +120°C and withstands voltages up to 250 VAC. Its physical dimensions are limited to a maximum length and width of 25.5 mm and a height of 18 mm, with a nominal lead spacing of 13 mm.

Feature Summary

• Provides common mode noise suppression for AC line circuits
• Constructed for through-hole mounting on printed circuit boards
• Engineered to handle high current loads up to 3 A

Applications

• AC power line filtering
• Electromagnetic interference (EMI) suppression
• Noise reduction in electronic equipment input stages

Procurement Notes

Verify the specific suffix code against official KEMET documentation to confirm exact electrical tolerances and mechanical dimensions. Ensure the selected variant matches the required thermal operating range and current capacity for the target application environment before finalizing procurement.

Selection Notes

Select this component when designing circuits requiring robust common mode noise attenuation at 9.2 mH. Confirm that the 3 A current rating and 79 mΩ DC resistance align with the system's power requirements. Validate that the through-hole package fits the available PCB layout constraints.

Part Context

This part belongs to the KEMET SSRH24NHS series of AC line filters. These components are specifically engineered for common mode applications, offering reliable performance in industrial and commercial electronics where EMI compliance is critical for stable operation.

Replacement Considerations

Consult official KEMET substitution guides for verified equivalents. Ensure any replacement maintains identical inductance, current ratings, and physical footprint to preserve circuit integrity.
