Product Detailed Parameters
- Description：CMC 14.5MH 3A 2LN TH
- Series：SSRH
- Mfr：KEMET
- Package：Bulk
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：102mOhm (Typ)
- Voltage Rating - DC：-
- Voltage Rating - AC：250V
- Operating Temperature：-25°C ~ 120°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：1.004" L x 1.004" W (25.50mm x 25.50mm)
- Height (Max)：1.220" (31.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：14.5 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

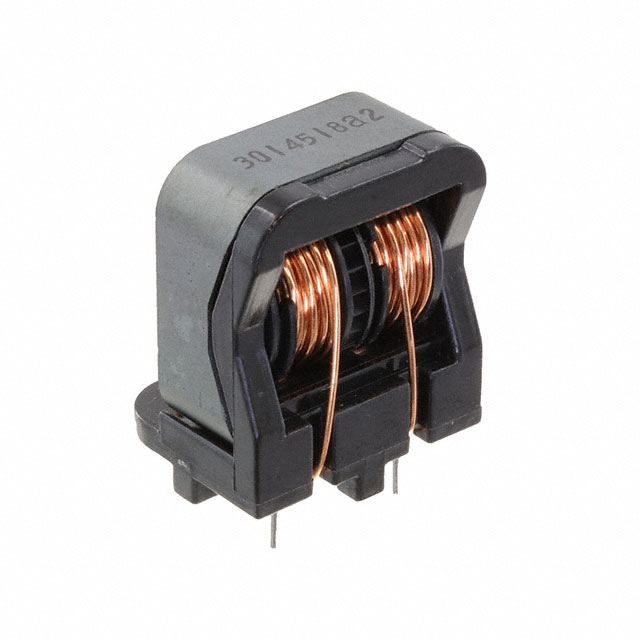

The KEMET SSRH24NV-30145 is a high impedance common mode choke designed for AC line filtering applications. It features an inductance of 14.5 mH and supports a maximum DC current of 3 A. The component operates within a temperature range of -25 °C to +120 °C and is rated for 250 VAC. Its low DC resistance of 0.102 ohms ensures minimal power loss. This through-hole device belongs to the SSRH series, offering reliable electromagnetic interference suppression for commercial grade electronic equipment.
Feature Summary
- Provides high impedance common mode filtering for AC lines
- Supports continuous operation up to 3 A DC current
- Rated for 250 VAC with robust thermal stability
Applications
- AC line input filtering
- Electromagnetic interference suppression
- Commercial electronic equipment power stages
Procurement Notes
Verify the complete part number including suffixes against official KEMET documentation to ensure correct electrical specifications. Confirm that the procurement source provides valid manufacturer traceability. Check for RoHS compliance status as indicated in the specific datasheet revision. Ensure the supplier offers genuine components to avoid counterfeit risks associated with passive magnetic components.
Selection Notes
Select this component when designing circuits requiring common mode noise reduction at 14.5 mH with a 3 A current rating. Ensure the PCB layout accommodates through-hole mounting requirements. Verify that the operating environment stays within the specified -25 °C to +120 °C range. Consider the physical dimensions and lead spacing during mechanical integration into the target assembly.
Part Context
This component is part of the KEMET SSRH series of common mode chokes. The series is engineered for commercial grade applications requiring effective AC line filtering. The SSRH24NV-30145 specifically addresses scenarios needing moderate inductance with high current handling capabilities. It serves as a critical element in power supply input stages for noise mitigation.
Replacement Considerations
Consult official KEMET cross-reference guides for verified substitutes. Ensure any replacement matches the 14.5 mH inductance, 3 A current rating, and 0.102 ohm DCR. Verify package compatibility and thermal performance limits before substitution.
