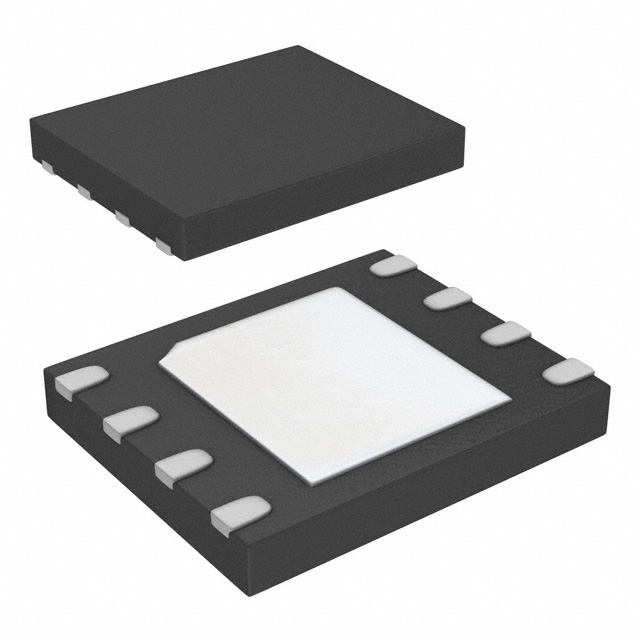

SST26VF016-80-5I-QAE-T is listed in the Memory IC range at ChipApex. The manufacturer field lists Microchip Technology. Its product description is IC FLASH 16MBIT SPI/QUAD 8WSON. Review the specifications below when checking this part for your BOM.
Memory IC specifications for SST26VF016-80-5I-QAE-T
- Description：IC FLASH 16MBIT SPI/QUAD 8WSON
- Series：SST26 SQI®
- Mfr：Microchip Technology
- Package：Tape & Reel (TR),Cut Tape (CT)
- Memory Type：Non-Volatile
- Memory Format：FLASH
- Technology：FLASH
- Memory Size：16Mbit
- Memory Organization：2M x 8
- Memory Interface：SPI - Quad I/O
- Clock Frequency：80 MHz
- Write Cycle Time - Word, Page：1.5ms
- Voltage - Supply：2.7V ~ 3.6V
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：8-WDFN Exposed Pad
- Supplier Device Package：8-WSON (6x5)
- Access Time：-
- Grade：-
- Qualification：-
Memory IC datasheet and documents for SST26VF016-80-5I-QAE-T
Memory IC Overview
The Microchip SST26VF016-80-5I-QAE-T is a 16 Mbit Serial Quad I/O flash memory utilizing SuperFlash technology. It operates on a single 2.7V to 3.6V supply with an 80 MHz clock frequency and 4-bit multiplexed interface. The device features 2M x 8 organization in an 8-contact WSON package, supporting industrial temperatures from -40°C to +85°C.
Memory IC Feature Summary
- Supports both SPI and 4-bit SQI protocols for backward compatibility and high-speed data transfer
- Includes a 256-bit Security ID with factory-programmed unique identifier and user-programmable segments
- Provides flexible erase capabilities with uniform sectors and parameter overlay blocks
- Features software write protection and lock-down mechanisms for block security
Memory IC Applications
- Mobile handsets
- Bluetooth headsets
- Optical disk drives
- GPS applications
- Portable electronic products
Memory IC Procurement Notes
Verify the specific suffix 'QAE' against official documentation to confirm the exact package type and temperature grade. Confirm RoHS compliance status as required by your manufacturing standards. Check current lifecycle status to ensure availability for new designs.
Memory IC Selection Notes
Select this component when a compact footprint and high-speed read performance are required. Ensure the host controller supports the 4-bit SQI protocol or standard SPI mode. Verify that the operating voltage range of 2.7V to 3.6V matches the system power rails.
Memory IC Part Context
This part belongs to the SST26VF series of Serial Quad I/O flash memories. It shares architectural similarities with other devices in the family but offers specific capacity and interface configurations tailored for space-constrained portable electronics requiring reliable non-volatile storage.
Memory IC Replacement Considerations
Check for direct substitutes within the SST26VF series with compatible pinouts and electrical characteristics. Verify if alternative packages like SOIC are available if the WSON form factor is unsuitable for the target assembly.
