ST-110AV

$1.27

Description：CMC 300MA 2LN 27 KOHM TH
Series：ST-110
Mfr：KEMET
Package：Tray

SKU:c66dabcd5b9b Category: Common Mode Chokes Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 300MA 2LN 27 KOHM TH
Series：ST-110
Mfr：KEMET
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：300mA
DC Resistance (DCR) (Max)：3Ohm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-20°C ~ 75°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max)：0.669" (17.00mm)
Package / Case：Vertical, 4 PC Pin
Inductance @ Frequency：-
Impedance @ Frequency：27 kOhms @ 500 kHz
Qualification：-
Grade：-

Download product information

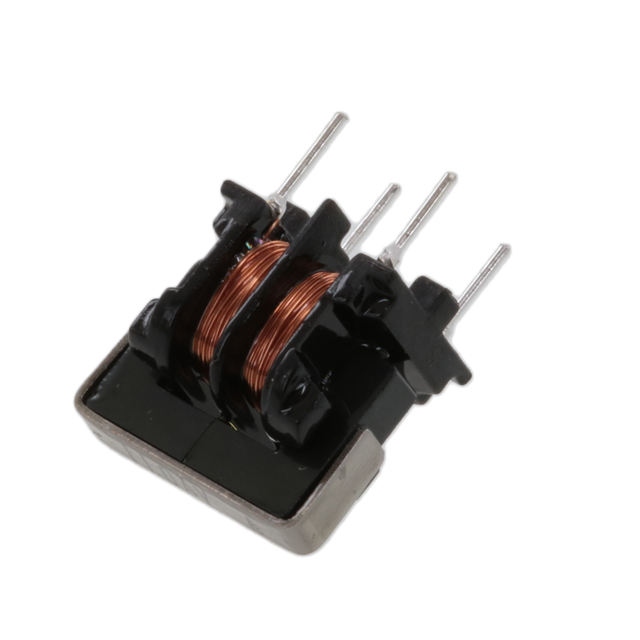

ST-110AV

Overview

The KEMET ST-110AV is a through-hole common mode DC line filter designed for signal and telephone applications. It operates within a temperature range of -20°C to +120°C. Key electrical specifications include a rated voltage of 50V, a current rating of 300mA (0.3A), and a DC resistance (DCR) of 3000mOhms. The component exhibits an impedance of 27 kOhms at 500 kHz.

Feature Summary

Through-hole mounting configuration for PCB integration
Common mode choke design for signal line filtering
Wide operating temperature capability

Applications

Signal line filtering
Telephone set protection
DC line noise suppression

Procurement Notes

Verify the specific suffix AV against official KEMET documentation to confirm mechanical dimensions and terminal compatibility. Ensure the selected variant meets the required thermal and electrical ratings for the target circuit environment before finalizing procurement orders.

Selection Notes

Select this component when through-hole assembly is required for common mode noise reduction in low-voltage DC lines. Confirm that the 300mA current rating and 50V voltage limit align with the system's operational parameters and safety standards.

Part Context

This part belongs to the KEMET ST-110 series of common mode chokes. The series includes various variants such as ST-110BV and ST-110AH, offering different configurations for signal and power line applications while maintaining consistent environmental compliance standards.

Replacement Considerations

Consult official KEMET substitution guides for verified equivalents. Cross-reference impedance curves and physical footprint dimensions to ensure compatibility with existing board layouts and performance requirements.
